Single parts for windshield cleaning for BMW 5 Series E28 M535i (1987)

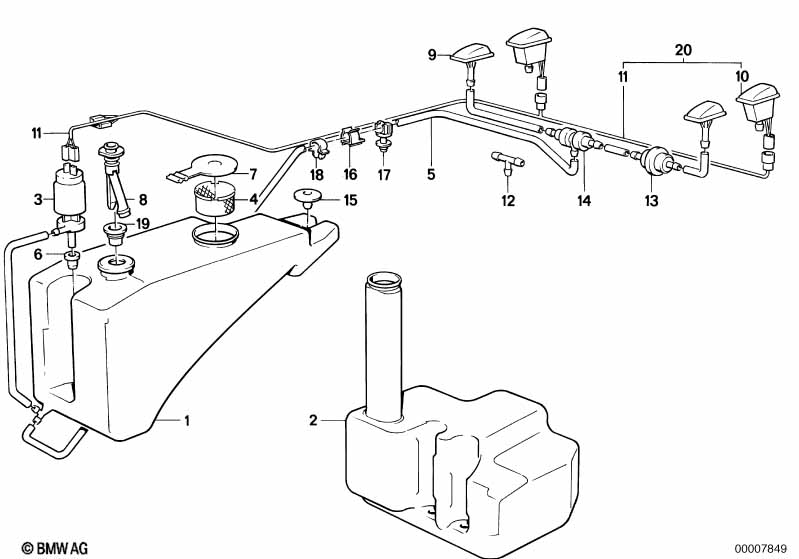

This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container | 1 | 61661367597 | $17.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wash pump | 1 | 61661368589 | $58.90 | Shop at ECS Tuning | |||||
| 04 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 05 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 08 | Levelling switch | 1 | 61311369263 | $49.30 | ENDED | Shop at ECS Tuning | ||||
| 09 | Spray nozzle | 2 | 04/1983 | 61661373401 | $6.84 | Shop at ECS Tuning | ||||
| 10 | Heated spray nozzle | 2 | 04/1983 | 61661373429 | $39.16 | Shop at ECS Tuning | ||||
| 11 | Wiring spraying nozzle | 1 | 04/1983 | 61121375347 | $26.11 | ENDED | Shop at ECS Tuning | |||
| 12 | Distribution piece | 1 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 13 | Valve | 2 | 09/1982 | 61661374978 | $9.64 | Shop at ECS Tuning | ||||
| 14 | Valve | 1 | 61661374978 | $9.64 | Shop at ECS Tuning | |||||
| 15 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 16 | Bracket breather pipe | 2 | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 17 | Holder | 1 | 61661368598 | $2.18 | Shop at ECS Tuning | |||||
| 18 | Tubing support | D=10,8MM | 3 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 19 | Rubber grommet | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 20 | Set heated spraying nozzle | 1 | 04/1983 | 61669057476 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Single parts for windshield cleaning?
- This technical diagram illustrates the Single parts for windshield cleaning within the Vehicle electrical system group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Fluid container (Part #61661367597).
- Which models use the hardware listed in this Single parts for windshield cleaning?
- The hardware and components featured in the Single parts for windshield cleaning are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Fluid container (61661367597) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for windshield cleaning assembly?
- Each item in the Single parts for windshield cleaning corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Fluid container by locating its position on the schematic, which then links to the official BMW part number 61661367597 for the Vehicle electrical system section.
