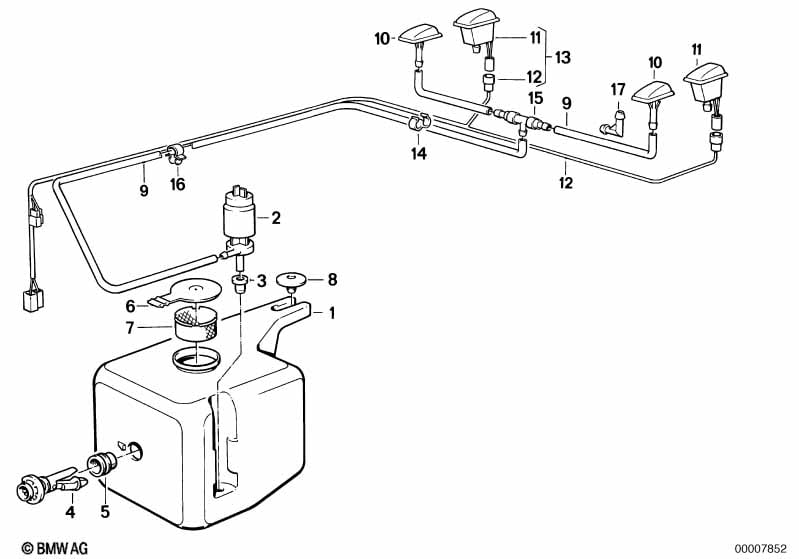

Single parts for windshield cleaning for BMW 3 Series E30 320i (1991)
This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Fluid container | 1 | 61661370788 | $68.49 | Shop at ECS Tuning | |||||
| 02 | Wash pump/fluid container | 1 | 09/1986 | 61661377830 | Shop at ECS Tuning | |||||

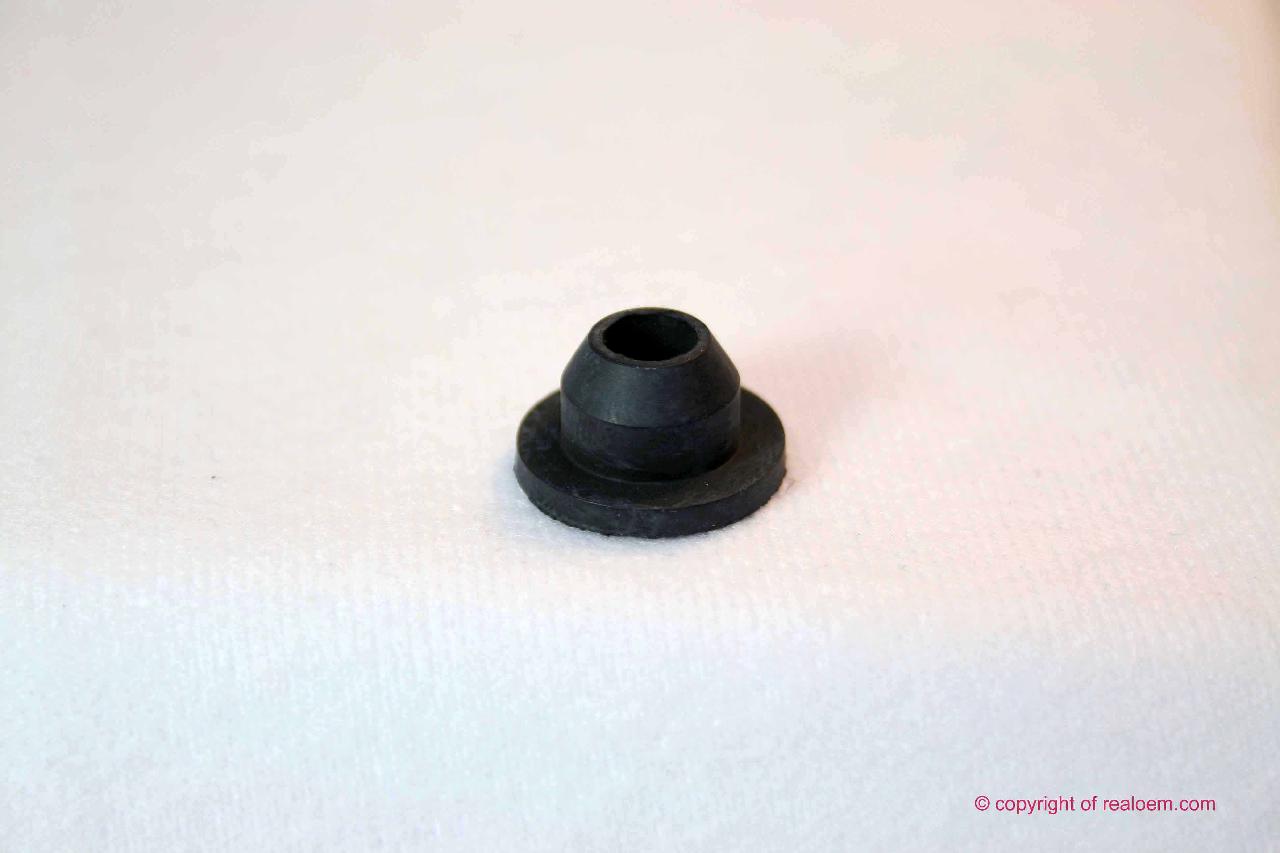

| 03 | Gasket | 1 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 04 | Levelling switch | 1 | 09/1986 | 03/1996 | 61311388548 | Shop at ECS Tuning | ||||

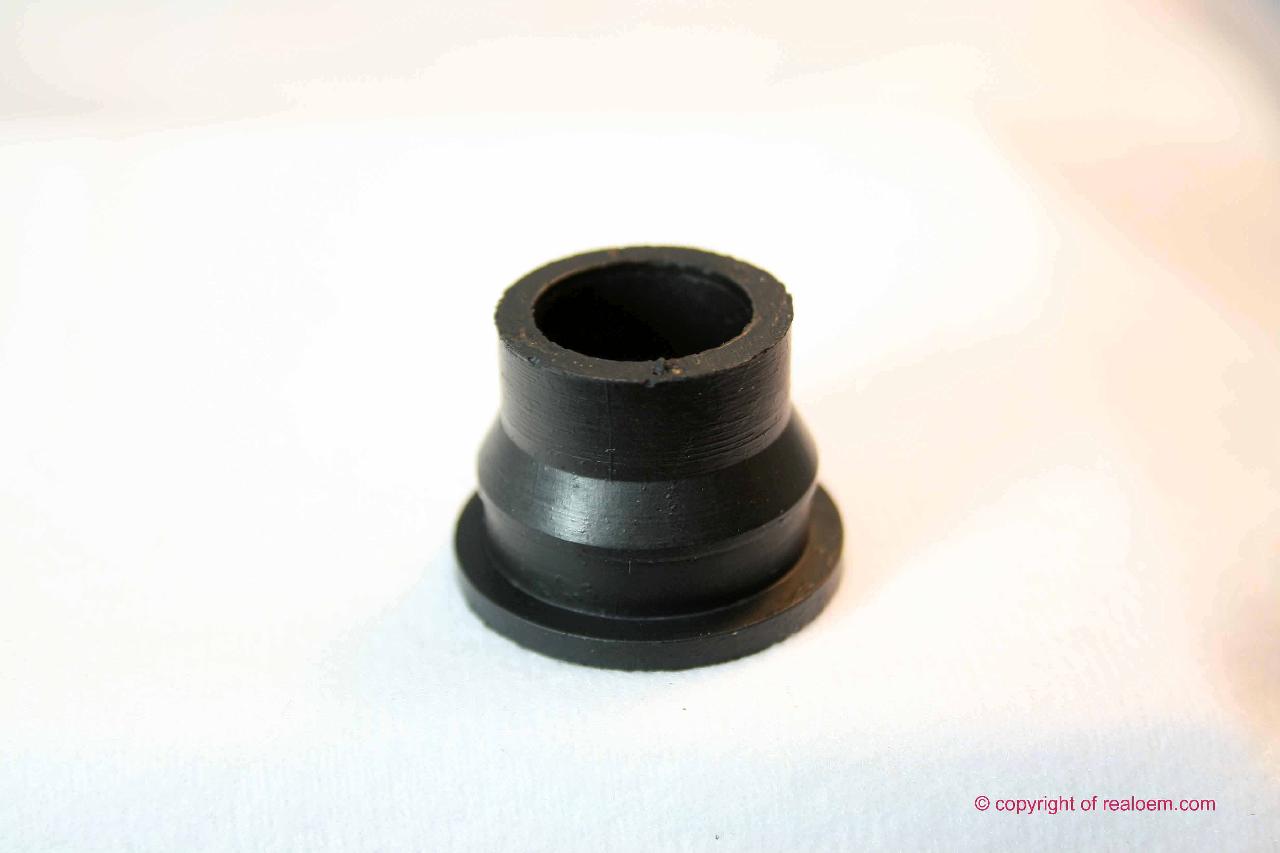

| 05 | Rubber grommet | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 61667467951 | Shop at ECS Tuning | ||||||
| 07 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 08 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 09 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 10 | Spray nozzle | 2 | 05/1983 | 61661373401 | $6.84 | Shop at ECS Tuning | ||||
| 11 | Heated spray nozzle | 2 | 05/1983 | 61661373429 | $39.16 | Shop at ECS Tuning | ||||
| 12 | Wiring spraying nozzle | 1 | 09/1986 | 61121380673 | $37.70 | Shop at ECS Tuning | ||||
| 13 | Set heated spraying nozzle | 1 | 61669057475 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cable holder | 2 | 12421284411 | $1.78 | Shop at ECS Tuning | |||||
| 15 | Valve | 1 | 61661374978 | $9.64 | Shop at ECS Tuning | |||||
| 16 | Cable holder | D=12,8MM | 4 | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 17 | Support | X | 61668374371 | $1.12 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
