Single parts for rear window cleaning for BMW 3 Series E30 320i (1990)

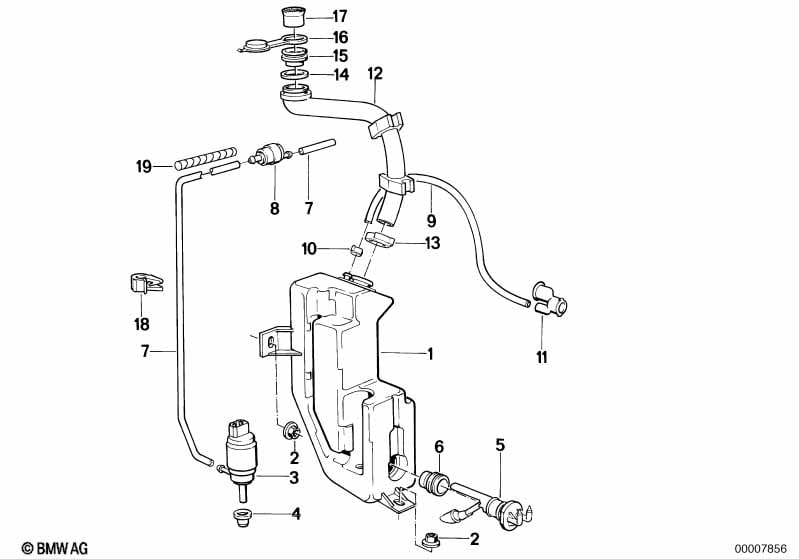

This Single parts for rear window cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Rear window | |||||||||
| 01 | Fluid container | 1 | 61681381559 | ENDED | Shop at ECS Tuning | |||||
| 02 | Plastic capnut with washer | D=18MM | 2 | 02/1994 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 02 | Plastic nut for coarse threaded pin | M6 | 2 | 07147336362 | Shop at ECS Tuning | |||||
| 03 | Wash pump/fluid container | 1 | 61661377830 | Shop at ECS Tuning | ||||||
| 04 | Gasket | 1 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 05 | Levelling switch | 1 | 61311388548 | Shop at ECS Tuning | ||||||
| 06 | Rubber grommet | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 07 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 07 | Hose line | D= 7MM | X | 61671388366 | $1.41 | Shop at ECS Tuning | ||||
| 08 | Valve | 1 | 61661380464 | $7.71 | Shop at ECS Tuning | |||||
| 09 | Vent hose | 1 | 61681381761 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hose clamp | L=9-12 | 1 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Hose connector | 1 | 61681385952 | Shop at ECS Tuning | ||||||
| 12 | Pipe | 1 | 61681381760 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Bottom cover | 1 | 61681386303 | $1.77 | Shop at ECS Tuning | |||||
| 15 | Center cover | 1 | 61681386302 | $4.18 | Shop at ECS Tuning | |||||
| 16 | Upper cover | 1 | 61681386301 | $1.18 | Shop at ECS Tuning | |||||
| 17 | Strainer | 1 | 61681386307 | $1.32 | ENDED | Shop at ECS Tuning | ||||
| 18 | Holder | D=10MM | 7 | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Protective hose | 1 | 12141306988 | $9.25 | ENDED | Shop at ECS Tuning | ||||
