Single parts for windshield cleaning for BMW 5 Series E34 525tds (1995)

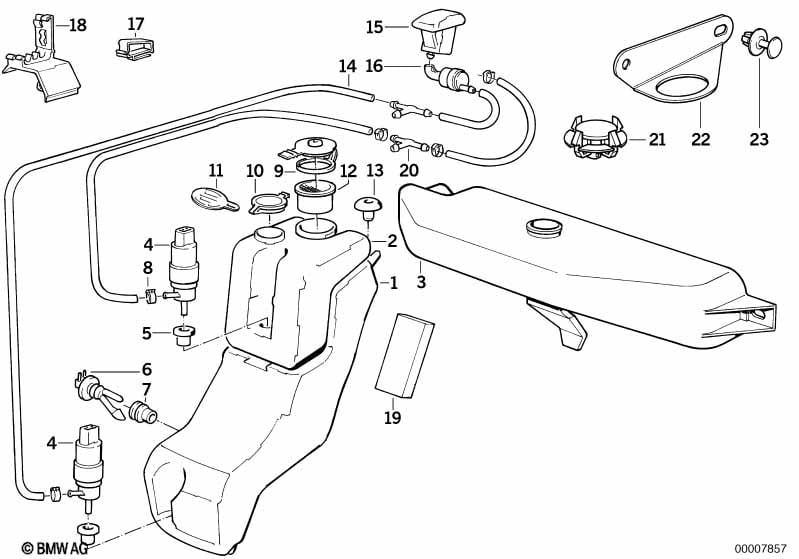

This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container | 3.7L | 1 | 61661384766 | $41.85 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 01 | Fluid container | 8.5L | 1 | 61671389426 | $41.85 | Shop at ECS Tuning | ||||
| 01 | Fluid container | 8L | 1 | 09/1991 | 61678359047 | $70.59 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Intensive cleaning |
=Yes |
|||||||||
| 02 | Fluid container f intensive cleaner | 1L | 1 | 61678350932 | $47.69 | ENDED | Shop at ECS Tuning | |||
| 04 | Wash pump/fluid container | 2 | 61661377830 | Shop at ECS Tuning | ||||||
| 05 | Gasket | 2 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 06 | Levelling switch | 1 | 03/1996 | 61311388548 | Shop at ECS Tuning | |||||
| 07 | Rubber grommet | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | 8-9.5MM | X | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 10 | Cover | 1 | 61661369516 | $1.88 | Shop at ECS Tuning | |||||
| 11 | Label "concentrated cleaner" | 1 | 51141885911 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 12 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 13 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 14 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 15 | Spray nozzle | 2 | 61661379735 | $15.60 | Shop at ECS Tuning | |||||
| 15 | Heated spray nozzle | 2 | 09/1990 | 61668350355 | $37.35 | Shop at ECS Tuning | ||||
| 16 | Valve f windshield cleaning | 2 | 61661389040 | $4.07 | Shop at ECS Tuning | |||||
| 17 | Cable holder | X | 61131379073 | $0.48 | ENDED | Shop at ECS Tuning | ||||
| 18 | Cable holder | 1 | 61131379590 | $1.37 | ENDED | Shop at ECS Tuning | ||||
| 19 | Base | 1 | 16111180163 | $1.08 | Shop at ECS Tuning | |||||
| 20 | Distribution piece | 2 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 21 | Thermo switch heatable spraying nozzle | 1 | 61318357632 | $32.46 | Shop at ECS Tuning | |||||
| 22 | Bracket for thermo switch | 1 | 61318359077 | $2.97 | Shop at ECS Tuning | |||||
| 23 | Expanding rivet | 1 | 61131378641 | $0.35 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525tds Single parts for windshield cleaning?
- This technical diagram illustrates the Single parts for windshield cleaning within the Vehicle electrical system group for the 5 Series E34 525tds produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Fluid container (Part #61661384766).
- Which models use the hardware listed in this Single parts for windshield cleaning?
- The hardware and components featured in the Single parts for windshield cleaning are specific to the 5 Series E34 525tds produced during 1995. These technical specifications ensure that parts like the Fluid container (61661384766) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for windshield cleaning assembly?
- Each item in the Single parts for windshield cleaning corresponds to the numbered list below the illustration. For the 5 Series E34 525tds, you can identify the Fluid container by locating its position on the schematic, which then links to the official BMW part number 61661384766 for the Vehicle electrical system section.
