Headlight cleaning system for BMW 7 Series E32 740i (1994)

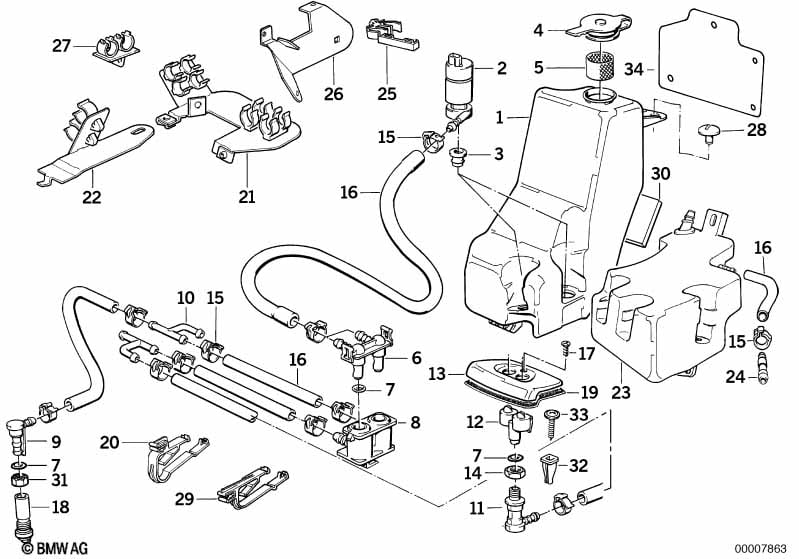

This Headlight cleaning system technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container | 5,5L | 1 | 61678350933 | $47.69 | Shop at ECS Tuning | ||||
| 02 | Pump headlight | 1 | 09/1988 | 61671382085 | $80.42 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket | 1 | 61671378631 | $0.80 | Shop at ECS Tuning | |||||
| 05 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 06 | Connector | 1 | 61671378630 | $3.27 | Shop at ECS Tuning | |||||
| 07 | Gasket ring | D=7,65MM | 4 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Distribution piece | 1 | 61671378627 | $2.75 | Shop at ECS Tuning | |||||
| 09 | Valve | 2 | 61671378629 | $15.17 | Shop at ECS Tuning | |||||
| 10 | Distribution piece | 2 | 61671378625 | $5.33 | Shop at ECS Tuning | |||||
| 11 | Bottom part | 2 | 61671378618 | $19.53 | Shop at ECS Tuning | |||||
| 12 | Spray nozzle | 2 | 61671378619 | $23.35 | ENDED | Shop at ECS Tuning | ||||
| FOR FITTING SEE REPAIR MANUAL | ||||||||||
| 13 | Covering cap left | 1 | 61671378621 | $7.88 | Shop at ECS Tuning | |||||
| 13 | Covering cap right | 1 | 61671378622 | $7.88 | Shop at ECS Tuning | |||||
| For vehicles with Shadow-Line |
=Yes |
|||||||||
| 13 | Covering cap left | 1 | 61678111577 | $8.90 | Shop at ECS Tuning | |||||
| 13 | Covering cap right | 1 | 61678111578 | $8.90 | Shop at ECS Tuning | |||||
| 14 | Hex nut | 4 | 61671378633 | $0.37 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | 15.5-18MM | X | 16131179065 | $0.67 | Shop at ECS Tuning | ||||
| 16 | Hose line | D= 10MM | X | 61671379530 | $5.85 | Shop at ECS Tuning | ||||
| 17 | Screw | 2 | 61671379773 | $1.02 | ENDED | Shop at ECS Tuning | ||||
| 18 | Spray nozzle | 2 | 61671378616 | $23.35 | Shop at ECS Tuning | |||||
| 19 | Left base | 1 | 61671379771 | $1.32 | Shop at ECS Tuning | |||||
| 19 | Right base | 1 | 61671379772 | $1.32 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hose clamp | 4 | 61671379745 | $2.00 | ENDED | Shop at ECS Tuning | ||||
| 23 | Lower fluid container | 2L | 1 | 61678350934 | $73.80 | ENDED | Shop at ECS Tuning | |||
| 24 | Connection piece | 1 | 61671382928 | $7.57 | Shop at ECS Tuning | |||||
| 25 | Hose clamp | 1 | 61671382920 | $1.75 | ENDED | Shop at ECS Tuning | ||||
| 26 | Bracket right | 1 | 61671382922 | $8.08 | ENDED | Shop at ECS Tuning | ||||
| 27 | Wire holder, two-place | 1 | 61661382907 | $0.88 | Shop at ECS Tuning | |||||
| 28 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 29 | Hose clamp | 3 | 61671382855 | $1.87 | ENDED | Shop at ECS Tuning | ||||
| 29 | Holder | X | 61678350455 | ENDED | Shop at ECS Tuning | |||||
| 30 | Base | 1 | 16111180163 | $1.08 | Shop at ECS Tuning | |||||
| 31 | Hex nut | M16X1,5-04-ZNS | 2 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| 32 | Expanding nut | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 33 | Sheet metal screw | ST4,8X19 | 2 | 07119904714 | $0.25 | Shop at ECS Tuning | ||||
| 34 | Heat resistant plate | 1 | 61678350939 | $7.57 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
