Single parts for head lamp cleaning for BMW 7 Series E23 735i (1982)

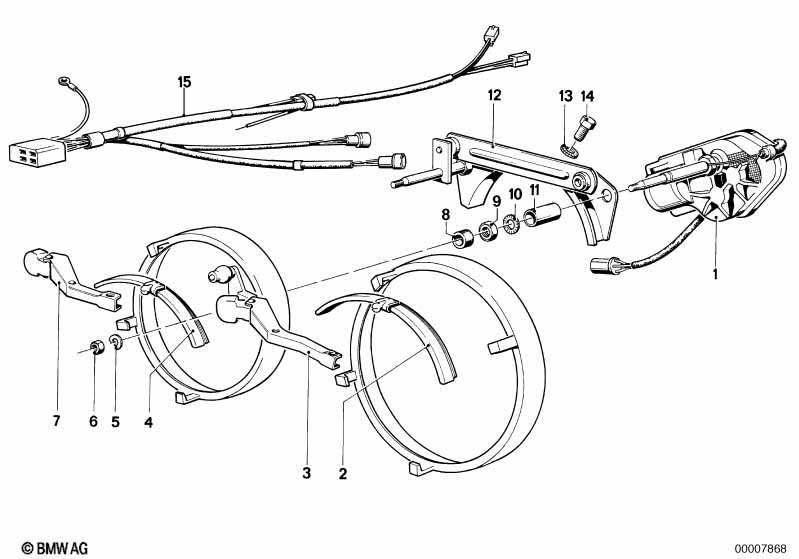

This Single parts for head lamp cleaning technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper motor left | 1 | 09/1982 | 61631362083 | $190.84 | ENDED | Shop at ECS Tuning | |||
| 01 | Wiper motor right | 1 | 09/1982 | 61631362084 | $208.69 | ENDED | Shop at ECS Tuning | |||
| 02 | Wiper blade | 2 | 09/1982 | 61631361019 | $31.41 | Shop at ECS Tuning | ||||
| 03 | Wiper arm left | 1 | 09/1982 | 61631364203 | $32.41 | ENDED | Shop at ECS Tuning | |||
| 03 | Wiper arm right | 1 | 09/1982 | 61631364204 | $33.02 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiper blade | 2 | 09/1982 | 61631356734 | $27.34 | ENDED | Shop at ECS Tuning | |||
| 05 | Spring washer | B5 | 4 | 09/1982 | 07119933060 | $0.11 | Shop at ECS Tuning | |||
| 06 | Hex nut | M5-8-ZNNIV SI | 8 | 09/1982 | 07119905729 | Shop at ECS Tuning | ||||
| 07 | Wiper arm left | 1 | 09/1982 | 61631364207 | $33.02 | ENDED | Shop at ECS Tuning | |||
| 07 | Wiper arm right | 1 | 09/1982 | 61631364208 | $33.02 | ENDED | Shop at ECS Tuning | |||
| 08 | Cap | 2 | 09/1982 | 61631359531 | $5.12 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex nut | 2 | 09/1982 | 61631363530 | $0.41 | ENDED | Shop at ECS Tuning | |||
| 10 | Tooth washer | J10,5 | 4 | 09/1982 | 07119936227 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 11 | Pipe | 2 | 09/1982 | 61631362592 | $5.25 | Shop at ECS Tuning | ||||
| 12 | Wipershaft pivot left | 1 | 09/1982 | 61631363531 | $63.89 | ENDED | Shop at ECS Tuning | |||
| 12 | Wipershaft pivot right | 1 | 09/1982 | 61631363532 | $59.71 | ENDED | Shop at ECS Tuning | |||
| 13 | Tooth washer | A5,1 | 4 | 09/1982 | 07119936107 | $0.18 | Shop at ECS Tuning | |||
| 14 | Hex bolt | M5X8 | 4 | 09/1982 | 07119913212 | $0.25 | Shop at ECS Tuning | |||
| 15 | Cable set, headlight cleaning system | 1 | 09/1981 | 09/1982 | 61121371878 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
