Single parts for head lamp cleaning for BMW 7 Series E23 735i (1986)

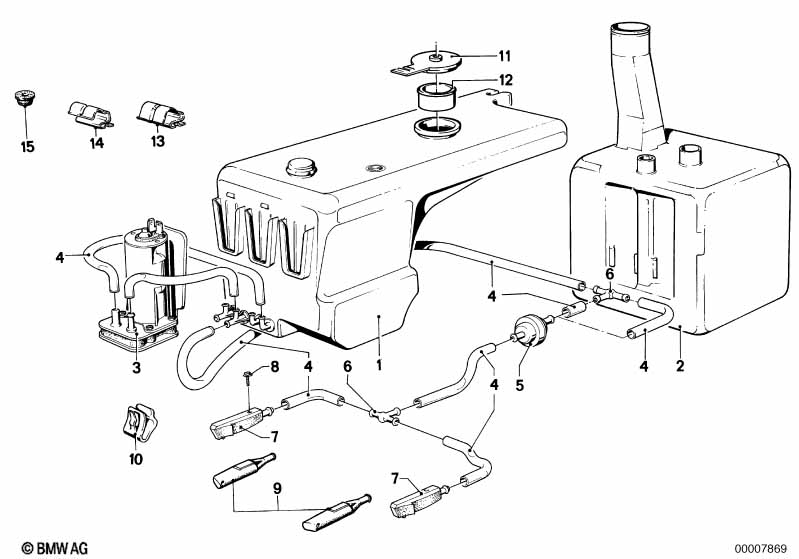

This Single parts for head lamp cleaning technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container | 1 | 61661363287 | $40.54 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wash pump | 3 | 61661366593 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 04 | Hose | X | 61661366549 | ENDED | Shop at ECS Tuning | |||||
| 05 | Valve | 2 | 61661380464 | $7.71 | Shop at ECS Tuning | |||||
| 06 | Distribution piece | 3 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 09 | Spray nozzle | 2 | 09/1982 | 61671369124 | $5.27 | ENDED | Shop at ECS Tuning | |||
| 10 | Cable clamp | D=8/B=1,5 | 6 | 61131354726 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 12 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
