Headlight cleaning system for BMW 5 Series E28 518 (1984)

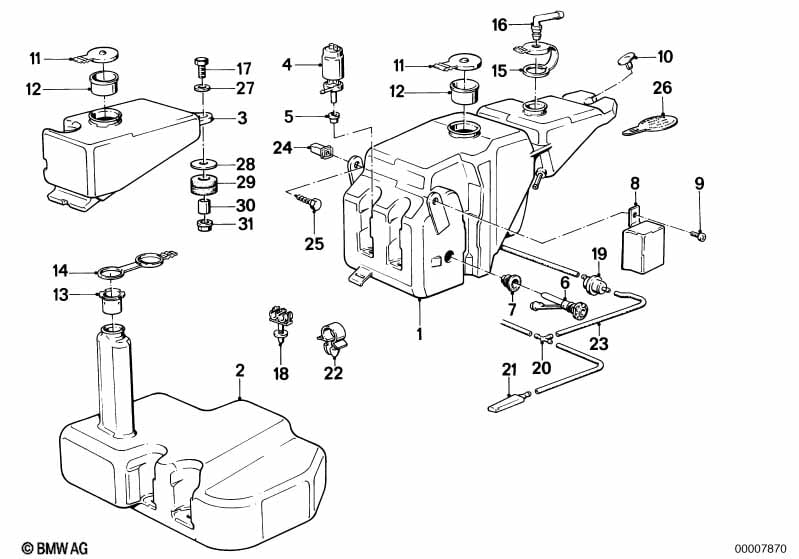

This Headlight cleaning system technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container | 1 | 61661367596 | $91.94 | Shop at ECS Tuning | |||||
| 04 | Wash pump | 3 | 61661368589 | $58.90 | Shop at ECS Tuning | |||||
| 05 | Gasket | 3 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 08 | Wiper-wash-interval control unit | 1 | 61311367391 | $207.32 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M5X8-Z3 | 1 | 07119906822 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 11 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 12 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 61661369516 | $1.88 | Shop at ECS Tuning | |||||
| 16 | Connector | 1 | 61661366481 | $1.43 | Shop at ECS Tuning | |||||
| 18 | Holder | 1 | 61661370388 | Shop at ECS Tuning | ||||||
| 19 | Valve | 5 | 61661380464 | $7.71 | Shop at ECS Tuning | |||||
| 20 | Distribution piece | 5 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 21 | Spray nozzle | 2 | 61671369124 | $5.27 | ENDED | Shop at ECS Tuning | ||||
| 22 | Cable holder | D=16,8MM | 2 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 22 | Cable holder | D=12,8MM | 4 | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 23 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 24 | Expanding nut | ST 6.3 | 1 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 25 | Hex head screw | ST6,3X32-C-Z1 | 1 | 07119916975 | $0.36 | Shop at ECS Tuning | ||||
| 26 | Label "concentrated cleaner" | 1 | 51141885911 | $0.50 | ENDED | Shop at ECS Tuning |
