Headlight cleaning system for BMW 5 Series E28 M535i (1987)

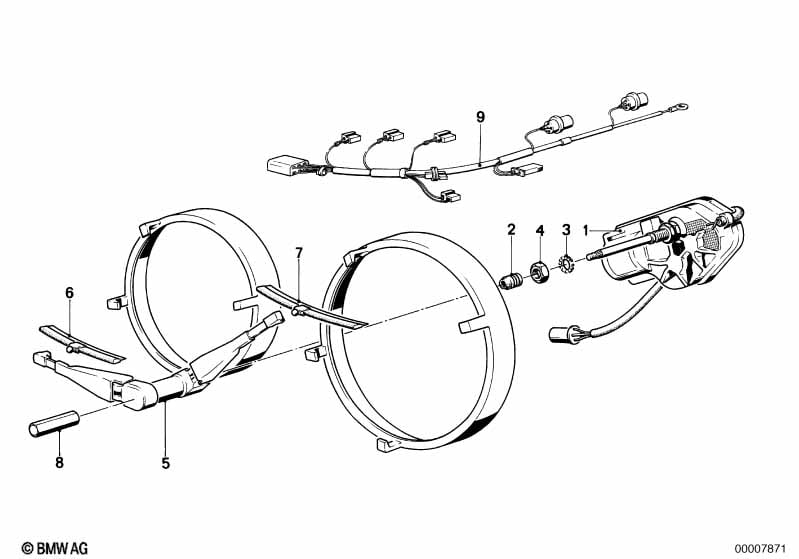

This Headlight cleaning system technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper motor left | 1 | 09/1982 | 61631373037 | $262.26 | ENDED | Shop at ECS Tuning | |||
| 01 | Wiper motor right | 1 | 09/1982 | 61631373038 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 02 | Cap | 2 | 61631359531 | $5.12 | ENDED | Shop at ECS Tuning | ||||
| 03 | Tooth washer | J10,5 | 2 | 07119936227 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | 2 | 61631363530 | $0.41 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wiper arm left | 1 | 61631369115 | $35.98 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wiper arm right | 1 | 61631369116 | $35.98 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wiper blade | 2 | 61631356734 | $27.34 | ENDED | Shop at ECS Tuning | ||||
| 07 | Wiper blade | 2 | 61631361019 | $31.41 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M5 HOCH | 2 | 61631369183 | $1.59 | ENDED | Shop at ECS Tuning | |||
| 09 | Cable set, headlight cleaning system | 1 | 09/1982 | 61121373135 | $41.60 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
