Retrofit kit, headlight cleaning system for BMW 3 Series E30 M3 (1990)

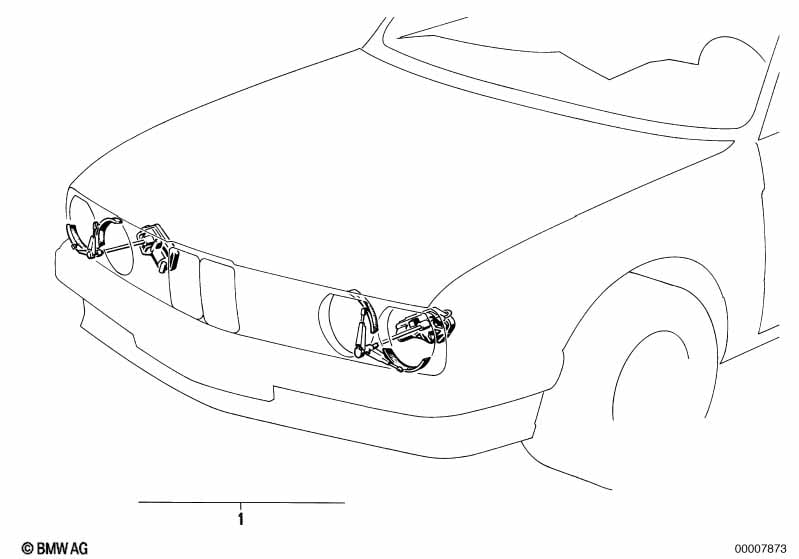

This Retrofit kit, headlight cleaning system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, headlight cleaning system | 1 | 09/1987 | 61671386339 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fluid container | 1 | 09/1987 | 61671370777 | $34.88 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Retrofit kit, headlight cleaning system?
- This technical diagram illustrates the Retrofit kit, headlight cleaning system within the Vehicle electrical system group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, headlight cleaning system (Part #61671386339).
- Which models use the hardware listed in this Retrofit kit, headlight cleaning system?
- The hardware and components featured in the Retrofit kit, headlight cleaning system are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Retrofit kit, headlight cleaning system (61671386339) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit kit, headlight cleaning system assembly?
- Each item in the Retrofit kit, headlight cleaning system corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Retrofit kit, headlight cleaning system by locating its position on the schematic, which then links to the official BMW part number 61671386339 for the Vehicle electrical system section.
