Single parts for head lamp cleaning for BMW 3 Series E30 320i (1990)

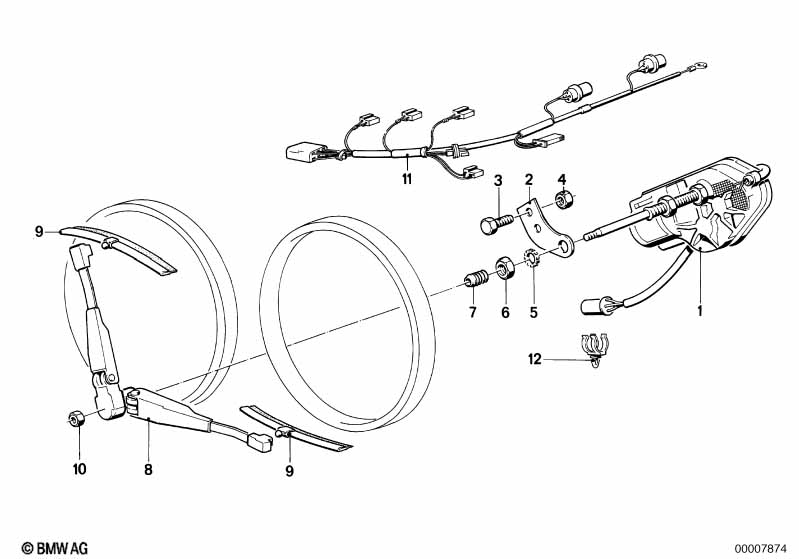

This Single parts for head lamp cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper motor left | 1 | 61631370895 | $341.89 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wiper motor right | 1 | 61631370896 | $384.78 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder | 2 | 61631370894 | $7.80 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M6-10 ZN | 4 | 04/1993 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 04 | Self-locking hex nut | M6 ZNNIV SI | 4 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Tooth washer | J10,5 | 2 | 07119936227 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut | 2 | 61631363530 | $0.41 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cap | 2 | 61631359531 | $5.12 | ENDED | Shop at ECS Tuning | ||||
| 08 | Wiper arm left | 1 | 61631370887 | $36.96 | ENDED | Shop at ECS Tuning | ||||
| 08 | Wiper arm right | 1 | 61631370888 | $36.96 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wiper blade | 4 | 61631356734 | $27.34 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5 | 2 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 11 | Cable set, headlight cleaning system | 1 | 09/1986 | 61121380675 | $104.44 | ENDED | Shop at ECS Tuning | |||
| 12 | Holder | D = 13MM | 2 | 61131371074 | $2.52 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
