Single parts for head lamp cleaning for BMW 3 Series E30 316 (1988)

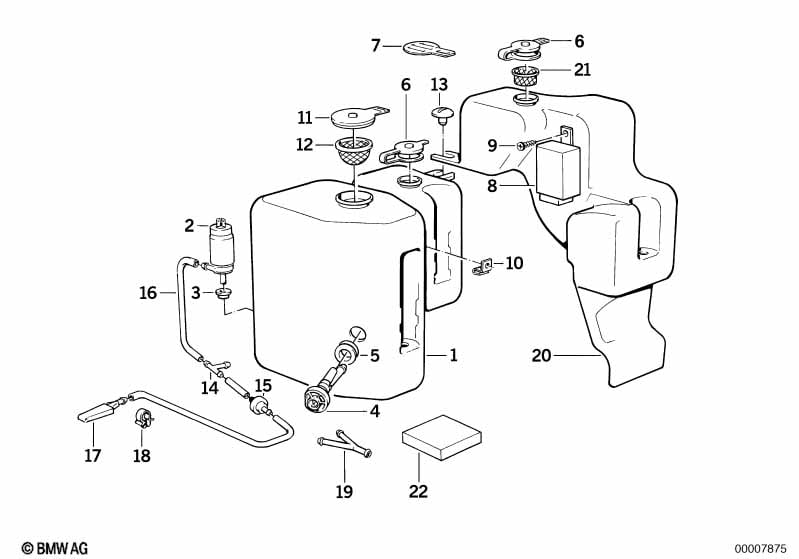

This Single parts for head lamp cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wash pump/fluid container | 3 | 09/1986 | 61661377830 | Shop at ECS Tuning | |||||
| 03 | Gasket | 3 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 61661369516 | $1.88 | Shop at ECS Tuning | |||||
| 07 | Label "concentrated cleaner" | 1 | 51141885911 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 08 | Wiper-wash-interval control unit | 1 | 61311367391 | $207.32 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,8X13-Z2 | 1 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Body nut | 1 | 61671372655 | $0.20 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 11 | Cover | 1 | 61667467951 | Shop at ECS Tuning | ||||||
| 12 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 13 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 14 | Distribution piece | 3 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 15 | Valve | 2 | 61661380464 | $7.71 | Shop at ECS Tuning | |||||
| 16 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 17 | Spray nozzle | 2 | 61671369124 | $5.27 | ENDED | Shop at ECS Tuning | ||||
| 18 | Cable holder | D=16,8MM | 4 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 19 | Distribution piece | 2 | 61661378617 | $0.67 | Shop at ECS Tuning |
