Wiring set for BMW 8 Series E31 850Ci (1991)

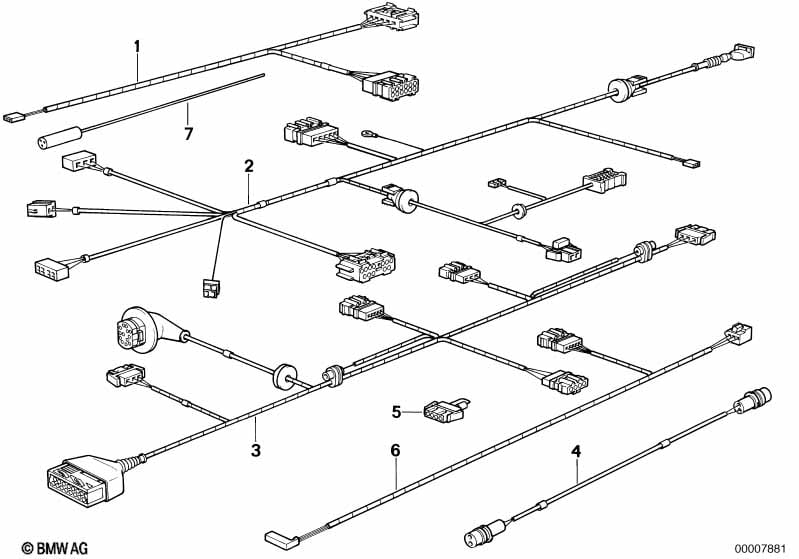

This Wiring set technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set electr.sliding lifting roof | 1 | 61121392589 | $50.50 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wiring set f Independent ventilation | 1 | 61121392702 | $31.25 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring f independ.heater and ventilation | 1 | 61121392588 | $142.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wiring set trailer coupling | 1 | 01/1991 | 61128354227 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wiring set brake lining wear rear right | 1 | 09/1991 | 61121392721 | $30.43 | Shop at ECS Tuning | ||||
| 04 | Wiring set brake lining wear front left | 1 | 09/1991 | 61121392722 | $27.34 | ENDED | Shop at ECS Tuning | |||
| 06 | Wiring sun blind | 1 | 61121392587 | $44.33 | ENDED | Shop at ECS Tuning | ||||
| 07 | Repair cable ABS | 1 | 61128376019 | $43.30 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shrinking hose | 6X45MM | 1 | 61135A4F528 | Shop at ECS Tuning | |||||
| -- | Blade terminal contact MDK4 2.8 w. wire | 1,0 MM²/SN | 2 | 12520007252 | $2.03 | Shop at ECS Tuning | ||||
| -- | Insulating hose | B3X0,4 | 1 | 07119975250 | $9.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
