Various switches for BMW 3 Series E36 320i (1995)

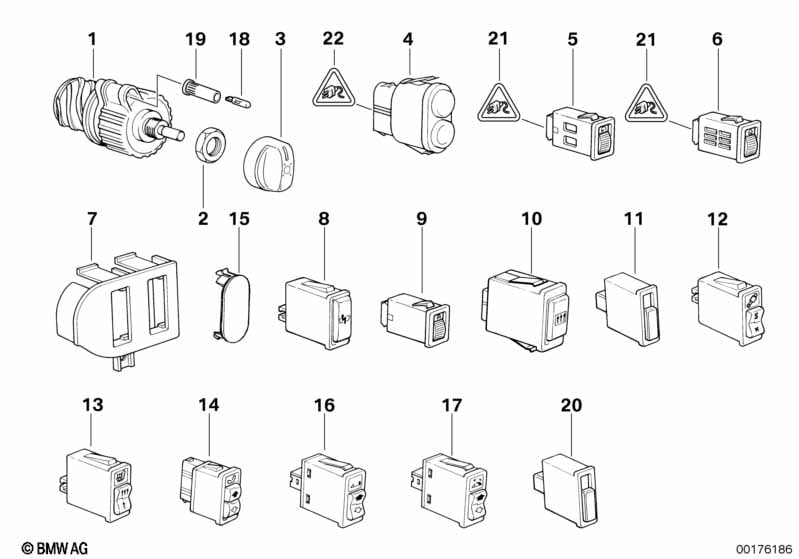

This Various switches technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version scandinavia |
L827A=Yes |
|||||||||
| 01 | Light switch | 1 | 61311393394 | +core | Shop at ECS Tuning | |||||
| 02 | Hex nut | 1 | 61311387053 | $1.57 | Shop at ECS Tuning | |||||
| 03 | Light switch button | 1 | 61311387052 | $6.22 | Shop at ECS Tuning | |||||
| For vehicles with Fog lights |
S520A=No |
|||||||||
| 04 | Fog lamp switch | 1 | 61311387055 | $32.07 | Shop at ECS Tuning | |||||
| For vehicles with Fog lights |
S520A=Yes |
|||||||||
| 04 | Switch fog lamp and fog tail lamp | 1 | 61311387054 | $48.12 | Shop at ECS Tuning | |||||
| 06 | Light intensity regulator | 60 WATT | 1 | 61311391842 | Shop at ECS Tuning | |||||
| 07 | Covering illumination regulator | 1 | 63128353004 | Shop at ECS Tuning | ||||||
| 09 | Switch head light aim control | 1 | 61318360883 | $44.90 | Shop at ECS Tuning | |||||
| 13 | Seat heating switch | 2 | 61311387917 | $157.56 | Shop at ECS Tuning | |||||
| 14 | Lumbar support switch | 1 | 61311393363 | $109.08 | ENDED | Shop at ECS Tuning | ||||
| 15 | Plug | 1 | 65751383950 | $8.23 | Shop at ECS Tuning | |||||
| 17 | Switch sun blind | 1 | 61311383488 | $84.81 | ENDED | Shop at ECS Tuning | ||||
| 18 | Bulb | 0,36 WATT | 1 | 61138360844 | $1.62 | Shop at ECS Tuning | ||||
| 19 | Bulb socket, white | KOSTAL | 1 | 61318370557 | $12.53 | Shop at ECS Tuning | ||||
| 19 | Bulb socket, black | VIMERCATI | 1 | 61318370558 | $7.57 | Shop at ECS Tuning | ||||
| 21 | Plug housing | 4 POL. | 1 | 61131378134 | $4.27 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 with cable | 1,5-2,5 MM² AG | X | 61132466429 | Shop at ECS Tuning | |||||
| -- | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | X | 61135A07B73 | Shop at ECS Tuning | |||||
| 22 | Housing | 1 | 61131378135 | $2.12 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 2,5-4,0 MM² AG | X | 61132471442 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 4.0MM² | X | 61138352924 | $0.28 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
