Battery for BMW 3 Series E36 318i (1995)
This Battery technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery Fa. Douglas (Warranty only) | 75AH 340A | 1 | 12/1998 | 61218353651 | $128.26 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Battery Fa. Douglas (Warranty only) | 50AH 265A | 1 | 61218376379 | $190.71 | ENDED | Shop at ECS Tuning | |||
| 01 | Battery from Exide (Warranty Only) | 50AH 265A | 1 | 61217567181 | $153.00 | Shop at ECS Tuning | ||||
| 01 | Battery Fa. Douglas (Warranty only) | 65AH 540A | 1 | 61218381720 | $117.50 | Shop at ECS Tuning | ||||
| 01 | Battery from Exide (Warranty Only) | 65AH 540A | 1 | 61217567182 | $182.00 | Shop at ECS Tuning | ||||
| 03 | Expansion tank | 1 | 61211376693 | $3.38 | Shop at ECS Tuning | |||||
| 04 | Battery hold down | 1 | 61217564274 | $1.88 | Shop at ECS Tuning | |||||
| 04 | Battery hold down | 1 | 61217631587 | Shop at ECS Tuning | ||||||
| 05 | Cover positive battery terminal | HOHE VERSION | 1 | 61211370990 | $5.92 | Shop at ECS Tuning | ||||
| 05 | Cover positive battery terminal | FLACHE VERSION | 1 | 61211386645 | $5.92 | Shop at ECS Tuning | ||||
| 06 | Hose running meter | 1 | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 07 | Grommet | 1 | 61131357511 | $1.55 | Shop at ECS Tuning | |||||
| 08 | Battery hold down | 1 | 61218353010 | $6.03 | Shop at ECS Tuning | |||||
| 09 | Connection elbow | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 11 | Heat insulating battery box | 50AH, 65AH | 1 | 61218361677 | $16.65 | ENDED | Shop at ECS Tuning | |||

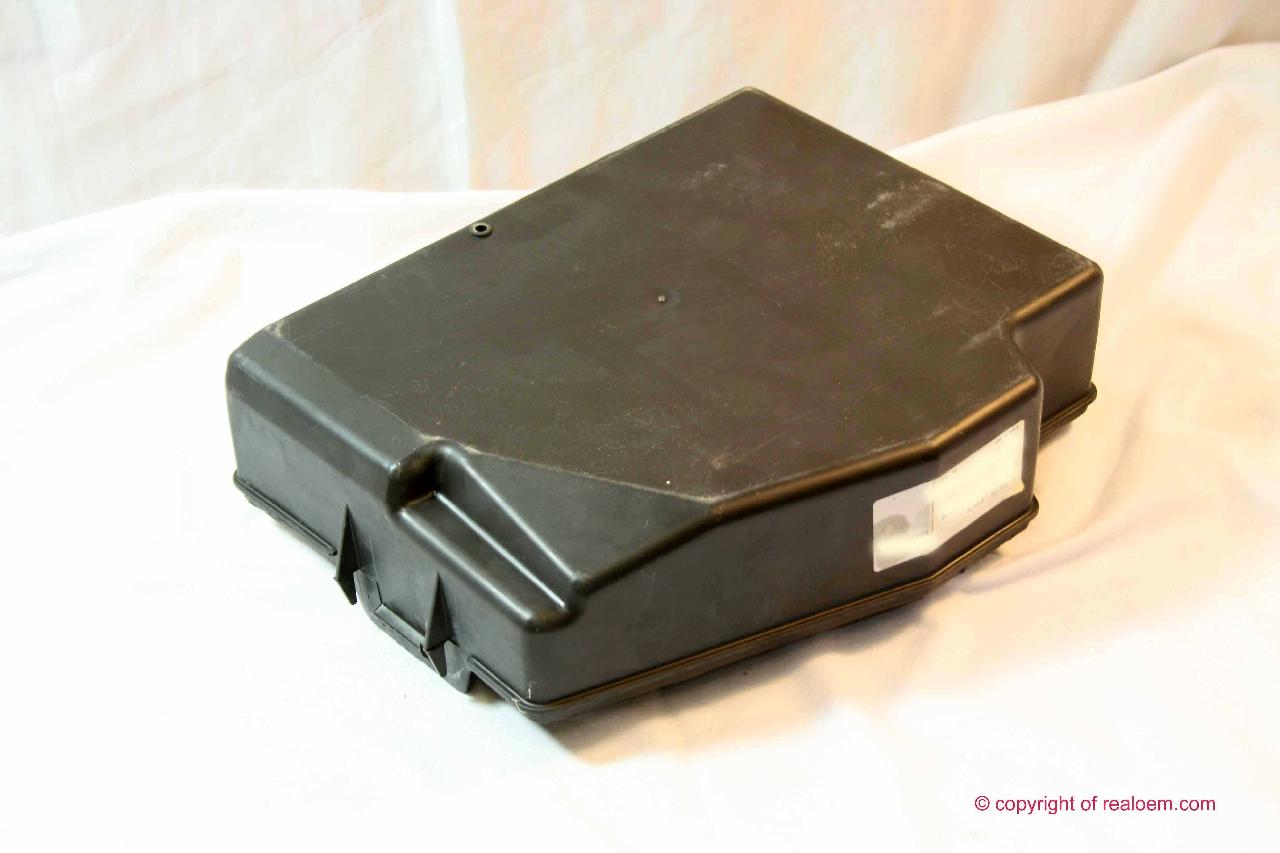

| 12 | Heat resistant battery box cover | 50AH, 65AH | 1 | 61218361676 | $14.40 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M8X25-Z1 | 2 | 07119901687 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
