Battery for BMW 3 Series E36 328i (1998)

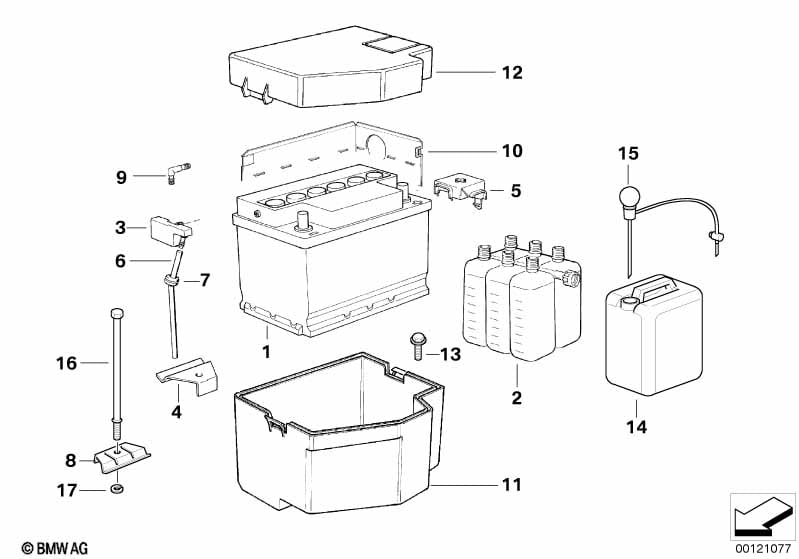

This Battery technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Original BMW battery (Warranty only) | 65AH | 1 | 61212432651 | Shop at ECS Tuning | |||||
| 01 | Original BMW battery (Warranty only) | 83AH | 1 | 61212432653 | Shop at ECS Tuning | |||||
| 01 | Empty BMW battery | 75AH | 1 | 61218381745 | ENDED | Shop at ECS Tuning | ||||
| 02 | Battery acid parcel (6 bottles) | 55/65AH | 1 | 61219057191 | Shop at ECS Tuning | |||||
| 02 | Battery acid parcel (6 bottles) | 70/75/80/85AH | 1 | 61219058697 | ENDED | Shop at ECS Tuning | ||||
| 03 | Expansion tank | 1 | 61211376693 | $3.38 | Shop at ECS Tuning | |||||
| 05 | Cover positive battery terminal | HOHE VERSION | 1 | 61211370990 | $5.92 | Shop at ECS Tuning | ||||
| 05 | Cover positive battery terminal | FLACHE VERSION | 1 | 61211386645 | $5.92 | Shop at ECS Tuning | ||||
| 06 | Hose running meter | 1 | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 07 | Grommet | 1 | 61131357511 | $1.55 | Shop at ECS Tuning | |||||
| 08 | Battery hold down | 1 | 61218353010 | $6.03 | Shop at ECS Tuning | |||||
| 09 | Connection elbow | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 14 | Battery acid canister, 30 liters | X | 61219069013 | ENDED | Shop at ECS Tuning | |||||
| 15 | Filling device f battery acid | X | 61219069014 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
