Single parts for windshield cleaning for BMW 3 Series E36 323i (1999)

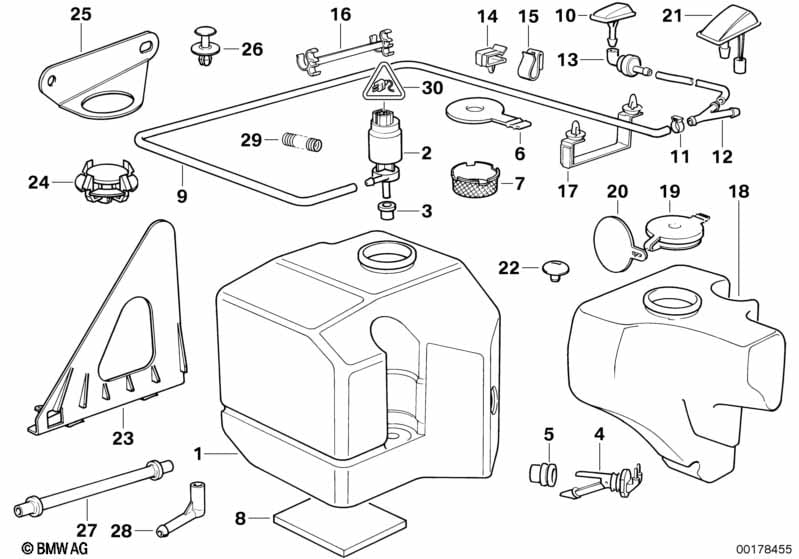

This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO REAR WIPER |
||||||||||
| 01 | Fluid container with levelling switch | 5L | 1 | 61678360747 | ENDED | Shop at ECS Tuning | ||||
| 01 | Fluid container | 5L | 1 | 61678360748 | $62.78 | Shop at ECS Tuning | ||||
| 02 | Washer pump rear | 1 | 11/1997 | 67128362154 | $42.75 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO REAR WIPER |
||||||||||
| 02 | Double wash pump | 1 | 11/1997 | 67128377987 | $67.20 | Shop at ECS Tuning | ||||
| 03 | Gasket | 1 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 61667467951 | Shop at ECS Tuning | ||||||
| 07 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 08 | Base | 1 | 16111180163 | $1.08 | Shop at ECS Tuning | |||||
| 09 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| ONLY APPLICABLE FOR REPAIR REAR WIPER HOSE |
||||||||||
| 09 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | 8-9.5MM | X | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 10 | Spray nozzle | 2 | 61601384859 | $3.27 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 10 | Spray nozzle | 2 | 61661379735 | $15.60 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | 8-9.5MM | X | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 12 | Distribution piece | 1 | 61661378617 | $0.67 | Shop at ECS Tuning | |||||
| 13 | Valve f windshield cleaning | 2 | 61661389040 | $4.07 | Shop at ECS Tuning | |||||
| 14 | Cable holder | 1 | 12521284441 | $0.88 | Shop at ECS Tuning | |||||
| 14 | Cable holder | 1 | 61138353135 | $0.35 | Shop at ECS Tuning | |||||
| 15 | Holder | 6 | 61131381436 | $0.47 | Shop at ECS Tuning | |||||
| 15 | Holder | 6 | 61131387626 | $0.57 | Shop at ECS Tuning | |||||
| 16 | Hose clamp | 1 | 61661393862 | $4.83 | Shop at ECS Tuning | |||||
| 17 | Hose clamp | 1 | 61668360096 | $1.25 | Shop at ECS Tuning | |||||
| For vehicles with Intensive cleaning |
=Yes |
|||||||||
| 18 | Fluid container | 1 | 03/1992 | 61678357724 | $73.80 | Shop at ECS Tuning | ||||
| 19 | Cover | 1 | 61661369516 | $1.88 | Shop at ECS Tuning | |||||
| 20 | Label "concentrated cleaner" | 1 | 51141885911 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 21 | Heated spray nozzle | 2 | 03/1997 | 61668376011 | $37.35 | Shop at ECS Tuning | ||||
| 22 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 23 | Hose clamp | 1 | 61678353884 | $3.17 | ENDED | Shop at ECS Tuning | ||||
| 24 | Thermo switch heatable spraying nozzle | 1 | 61318357632 | $32.46 | Shop at ECS Tuning | |||||
| 25 | Bracket for thermo switch | 1 | 61318359077 | $2.97 | Shop at ECS Tuning | |||||
| 26 | Expanding rivet | 1 | 61131378641 | $0.35 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO REAR WIPER |
||||||||||
| 27 | Connection pipe | 1 | 61688360714 | $1.77 | Shop at ECS Tuning | |||||
| 28 | Support | 2 | 61668374371 | $1.12 | Shop at ECS Tuning | |||||
| 29 | Protection tube | 1 | 61138374358 | $5.02 | Shop at ECS Tuning | |||||
| 30 | Universal socket housing uncoded | 2 POL. | 1 | 61138364520 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact, MDK3 w. wire | 0,5-1,0 MM² AG | 2 | 61130070586 | Shop at ECS Tuning | |||||
