Single wiper parts for BMW 3 Series E36 318is (1998)

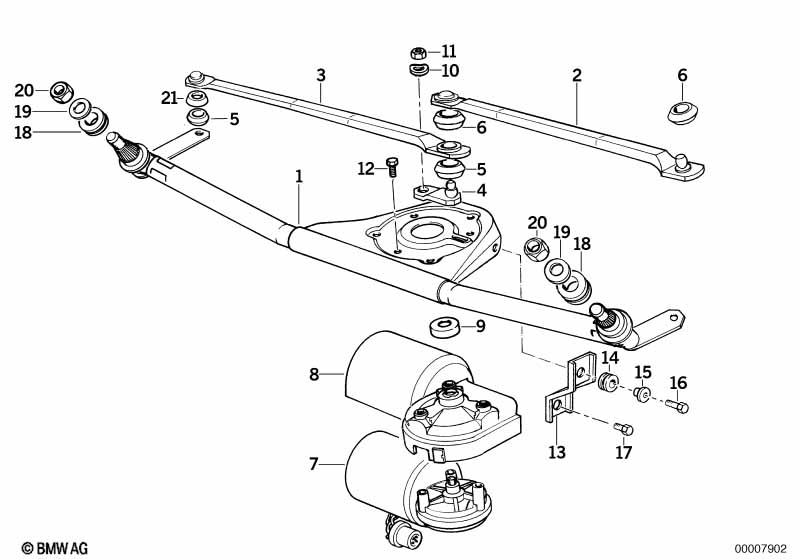

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Linkage for wiper | 1 | 61611393825 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Drive rod | 1 | 61611393829 | Shop at ECS Tuning | ||||||
| 03 | Drive rod | 1 | 61611393830 | Shop at ECS Tuning | ||||||
| 04 | Motor crank arm | BOSCH | 1 | 61611387400 | $9.80 | Shop at ECS Tuning | ||||
| 04 | Motor crank arm | MAGNETI MARELLI | 1 | 61618357512 | $17.20 | Shop at ECS Tuning | ||||
| 05 | Rubber boot f motor crank arm | D=16MM | 2 | 61611370649 | $6.02 | Shop at ECS Tuning | ||||
| 06 | Rubber boot | 2 | 61612297056 | $9.28 | Shop at ECS Tuning | |||||
| 07 | Wiper motor | 1 | 61638353433 | $478.84 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Motor crank arm | BOSCH | 1 | 61611387400 | $9.80 | Shop at ECS Tuning | ||||
| 10 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M8-8-ZNS3 | 1 | 08/2000 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 11 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M6X18-Z3-2 | 3 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Holder | 1 | 61611393832 | ENDED | Shop at ECS Tuning | |||||
| 14 | Damper ring | 1 | 61611372676 | $5.48 | Shop at ECS Tuning | |||||
| 15 | Bushing | 1 | 61611372677 | $45.66 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M6X20-U2-8.8 | 1 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 18 | Damper ring | 2 | 09/1994 | 61618357834 | $1.03 | Shop at ECS Tuning | ||||
| 19 | Washer | 2 | 09/1994 | 61618357835 | $0.35 | Shop at ECS Tuning | ||||
| 20 | Hex nut | M22X1 | 2 | 61611374447 | $0.95 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
