Single wiper parts for BMW 3 Series E36 328i (1999)

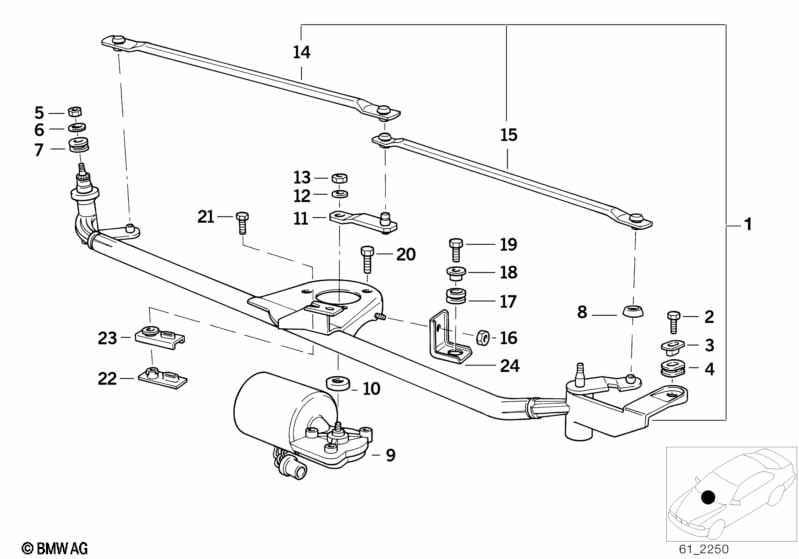

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Linkage for wiper | 1 | 61618215989 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Washer | 1 | 61611374255 | $0.90 | Shop at ECS Tuning | |||||
| COMPRISES DRIVE RODS | ||||||||||
| -- | Damper ring | 1 | 61611374257 | $0.95 | Shop at ECS Tuning | |||||
| COMPRISES DRIVE RODS | ||||||||||
| -- | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| COMPRISES DRIVE RODS | ||||||||||
| 02 | Hex bolt | M6X25 | 1 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Bushing | 1 | 61618353139 | $2.43 | ENDED | Shop at ECS Tuning | ||||
| 04 | Damper ring | 1 | 61618353140 | $2.12 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M22X1 | 1 | 61611374447 | $0.95 | Shop at ECS Tuning | ||||
| 06 | Washer | 1 | 02/1992 | 61618357835 | $0.35 | Shop at ECS Tuning | ||||
| 07 | Damper ring | 1 | 02/1992 | 61618357834 | $1.03 | Shop at ECS Tuning | ||||
| 08 | Gasket | 1 | 61618357738 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wiper motor | 1 | 67638357867 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hex bolt with washer | M6X18-Z3-2 | 3 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Covering cap | 1 | 61618353217 | $2.18 | Shop at ECS Tuning | |||||
| 11 | Motor crank arm | 1 | 61618353844 | $10.07 | Shop at ECS Tuning | |||||
| 12 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 14 | Drive rod | 1 | 61618353847 | Shop at ECS Tuning | ||||||
| 15 | Drive rod | 1 | 61618353848 | Shop at ECS Tuning | ||||||
| 16 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Damper ring | 1 | 61611372676 | $5.48 | Shop at ECS Tuning | |||||
| 18 | Bush | 1 | 61611374870 | $7.23 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hex bolt with washer | M6X18-Z3-2 | 1 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 22 | Bushing | 1 | 61618357506 | ENDED | Shop at ECS Tuning | |||||
| 23 | Absorbing piece | 1 | 61618357507 | ENDED | Shop at ECS Tuning | |||||
| 24 | Holder | 1 | 61618353873 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Single wiper parts?
- This technical diagram illustrates the Single wiper parts within the Vehicle electrical system group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Linkage for wiper (Part #61618215989).
- Which models use the hardware listed in this Single wiper parts?
- The hardware and components featured in the Single wiper parts are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Linkage for wiper (61618215989) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single wiper parts assembly?
- Each item in the Single wiper parts corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Linkage for wiper by locating its position on the schematic, which then links to the official BMW part number 61618215989 for the Vehicle electrical system section.
