Various switches/cigar lighter for BMW 7 Series E38 730iL (1996)

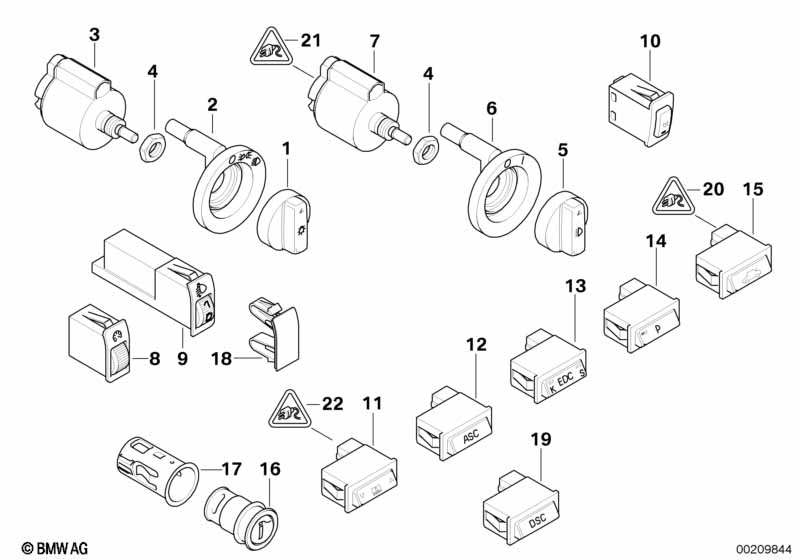

This Various switches/cigar lighter technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light switch button | 1 | 61318352222 | $5.78 | ENDED | Shop at ECS Tuning | ||||
| 02 | Light switch covering | 1 | 61318363685 | $17.92 | Shop at ECS Tuning | |||||
| 03 | Light switch | 1 | 09/1995 | 61318363683 | $44.90 | Shop at ECS Tuning | ||||
| 04 | Hex nut f light switch | 1 | 61318352261 | $0.38 | Shop at ECS Tuning | |||||
| 05 | Fog lamp switch button | 1 | 09/1999 | 61318352223 | $6.05 | Shop at ECS Tuning | ||||
| 06 | Foglamp switch covering | 1 | 09/1999 | 61318363688 | $17.92 | Shop at ECS Tuning | ||||
| 07 | Switch fog lamp and fog tail lamp | 1 | 09/1995 | 09/1999 | 61318363684 | $44.90 | Shop at ECS Tuning | |||
| 08 | Light intensity regulator | 1 | 61318352216 | $62.85 | +core | Shop at ECS Tuning | ||||
| 09 | Switch head light aim control | 1 | 09/1995 | 61318360843 | $44.90 | +core | Shop at ECS Tuning | |||
| 10 | Cruise control switch | 1 | 61318352256 | $80.19 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO REAR CENTRE CONSOLE | ||||||||||
| 11 | Switch sun blind | 1 | 61318360894 | $84.81 | Shop at ECS Tuning | |||||
| 12 | Switch ASC | 1 | 09/1998 | 61318363694 | $73.75 | Shop at ECS Tuning | ||||
| 13 | Switch EDC | 1 | 09/1998 | 61318352250 | $73.75 | Shop at ECS Tuning | ||||
| 14 | Park distance control switch | 1 | 09/1998 | 61318352253 | $73.75 | Shop at ECS Tuning | ||||
| 15 | Trunk unlocking switch | 1 | 61318365579 | $73.75 | Shop at ECS Tuning | |||||
| 16 | Lighter element | 2 | 09/1996 | 61341375967 | $19.58 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO ASHTRAY REAR |
||||||||||
| 17 | Cigarette lighter socket | 1 | 09/1996 | 61341378716 | $26.12 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO ASHTRAY FRONT |
||||||||||
| 17 | Cigarette lighter socket | 1 | 09/1996 | 61348352287 | $65.47 | Shop at ECS Tuning | ||||
| 18 | Covering cap | 1 | 61318352423 | $1.07 | Shop at ECS Tuning | |||||
| 19 | Switch DSC | 1 | 09/1998 | 61318363695 | $73.75 | Shop at ECS Tuning | ||||
| 20 | Universal socket housing uncoded | 6 POL. MQS | 1 | 61136954554 | $4.23 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| 22 | Universal socket housing uncoded | 6 POL. MQS | 1 | 09/1995 | 61136954554 | $4.23 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 09/1995 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
