Single wiper parts for BMW 7 Series E38 750iLS (2001)

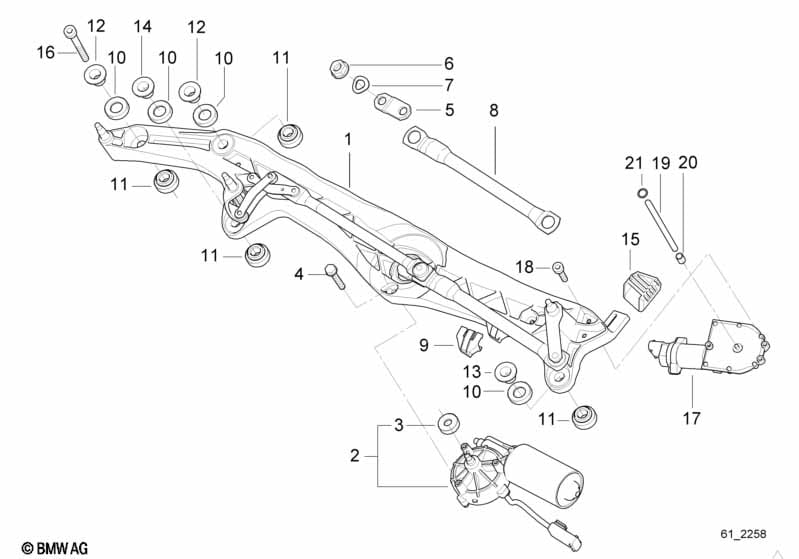

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper console | 1 | 03/1998 | 61618360049 | $652.83 | Shop at ECS Tuning | ||||
| 02 | Wiper motor | 1 | 67638352150 | $340.89 | Shop at ECS Tuning | |||||
| 03 | Wiper motor cover | 1 | 61611389528 | $6.40 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X18-Z3-2 | 3 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Motor crank arm | 1 | 61618352622 | $17.97 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Drive rod | 1 | 61618352621 | $14.90 | Shop at ECS Tuning | |||||
| 09 | Plug-in connection bracket | 1 | 61618360294 | $5.27 | ENDED | Shop at ECS Tuning | ||||
| 10 | Upper damper ring | 4 | 61618352620 | $2.27 | Shop at ECS Tuning | |||||
| 11 | Upper damper ring | 4 | 61618360053 | $3.57 | Shop at ECS Tuning | |||||
| 12 | Bush | D=13,6 | 2 | 61618352618 | $2.27 | Shop at ECS Tuning | ||||
| 13 | Bush | D=13,6X6,3 | 1 | 61618352619 | $2.27 | Shop at ECS Tuning | ||||
| 14 | Bush | D=6,3 | 1 | 61618360409 | $2.27 | Shop at ECS Tuning | ||||
| 15 | Absorbing piece | 1 | 61618360048 | $3.20 | Shop at ECS Tuning | |||||
| 16 | Fillister head screw | 4 | 07146988521 | $0.68 | Shop at ECS Tuning | |||||
| For vehicles with AKS |
=Yes |
|||||||||
| 17 | Pressure adjusting device | 1 | 67528360248 | ENDED | Shop at ECS Tuning | |||||
| 18 | Torx bolt | M5 X 16 | 3 | 61611382282 | $0.33 | ENDED | Shop at ECS Tuning | |||
| 19 | Tappet for pressure adjust. device | 1 | 61618360050 | $4.80 | Shop at ECS Tuning | |||||
| 20 | Thrust mounting f pressure adjust.device | 1 | 61611392125 | $3.10 | ENDED | Shop at ECS Tuning | ||||
| 21 | Gasket f pressure adjusting device | 1 | 61611392371 | $14.40 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
