Single components for wiper arm for BMW 7 Series E38 750iL (1998)

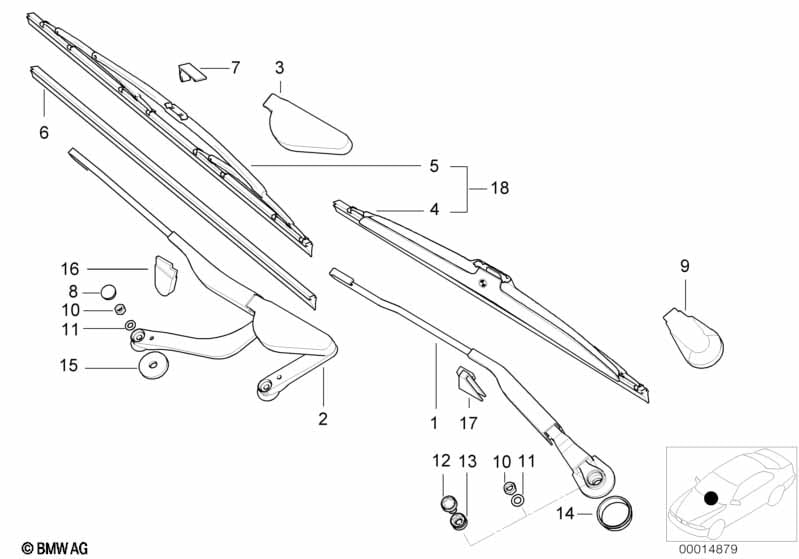

This Single components for wiper arm technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm left | 1 | 61618360097 | $70.67 | +core | Shop at ECS Tuning | ||||
| 02 | Wiper arm right | 1 | 61618352020 | $116.85 | Shop at ECS Tuning | |||||
| 03 | Wiper arm cover | 1 | 61618360052 | $7.08 | Shop at ECS Tuning | |||||
| 04 | Wiper blade left | 1 | 61618361475 | $27.18 | Shop at ECS Tuning | |||||
| 05 | Wiper blade right | 1 | 61618203954 | $46.30 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wiper rubber | 2 | 61618217711 | $15.60 | Shop at ECS Tuning | |||||
| 07 | Adapter | 1 | 61611379509 | $1.35 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cover cap, window washer axle | 2 | 61615A3F9D8 | Shop at ECS Tuning | ||||||
| 09 | Cap, wiper arm, left | 1 | 61618360249 | $7.72 | Shop at ECS Tuning | |||||
| 10 | Flange nut, self-locking | M8 | 3 | 06/1996 | 07147185682 | $0.96 | Shop at ECS Tuning | |||
| 14 | Left wiper axle gasket | 1 | 61618360251 | $1.17 | Shop at ECS Tuning | |||||
| 15 | Right wiper axle gasket | 2 | 61618360252 | $1.17 | Shop at ECS Tuning | |||||
| 16 | Right wiper blade guide | 1 | 61618206359 | $6.27 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
