Horn for BMW 7 Series E38 728i (1998)

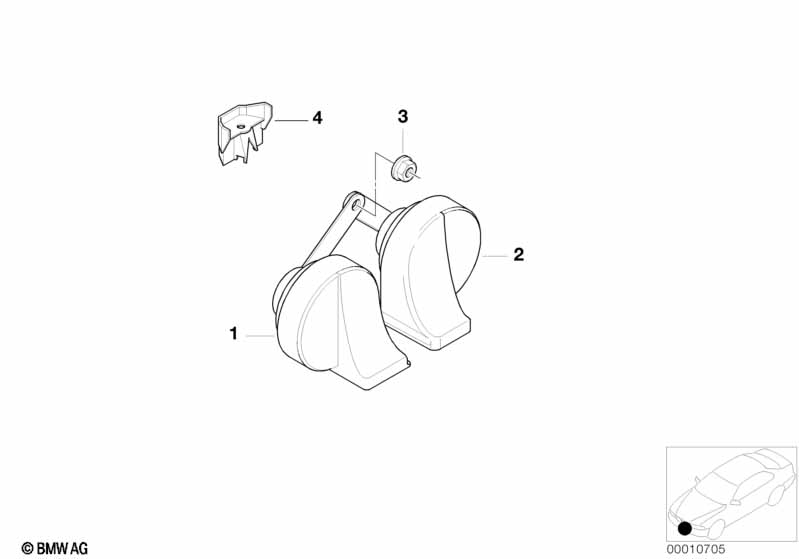

This Horn technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Horn, low pitch | 1 | 61337163976 | $42.63 | Shop at ECS Tuning | |||||
| 01 | Horn, low pitch | HELLA 400HZ | 1 | 61338374841 | +core | Shop at ECS Tuning | ||||
| 02 | Horn, high pitch | FIAMM 510HZ | 1 | 61337163977 | $42.63 | +core | Shop at ECS Tuning | |||
| 02 | Horn, high pitch | HELLA 500HZ | 1 | 61338374842 | +core | Shop at ECS Tuning | ||||
| 03 | Hex nut | M8-ZNS3 | 1 | 07119904024 | $0.20 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 728i Horn?
- This technical diagram illustrates the Horn within the Vehicle electrical system group for the 7 Series E38 728i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Horn, low pitch (Part #61337163976).
- Which models use the hardware listed in this Horn?
- The hardware and components featured in the Horn are specific to the 7 Series E38 728i produced during 1998. These technical specifications ensure that parts like the Horn, low pitch (61337163976) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Horn assembly?
- Each item in the Horn corresponds to the numbered list below the illustration. For the 7 Series E38 728i, you can identify the Horn, low pitch by locating its position on the schematic, which then links to the official BMW part number 61337163976 for the Vehicle electrical system section.
