Steering column switch for BMW 5 Series E39 525i (2003)

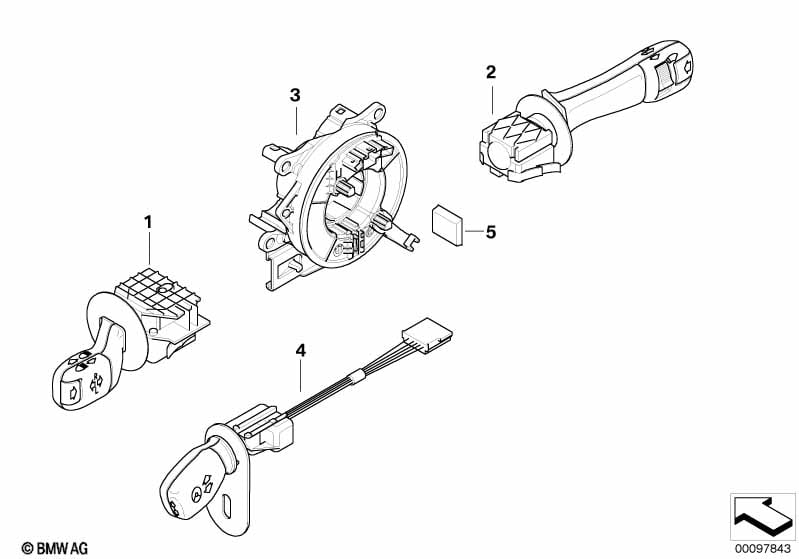

This Steering column switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with On-board computer |
=Yes |
|||||||||
| 01 | Switch turn signal,dip-dim control | 1 | 03/1999 | 61318363668 | $137.88 | Shop at ECS Tuning | ||||
| 02 | Wiper switch | 1 | 03/1999 | 61318363664 | $97.81 | Shop at ECS Tuning | ||||
| For vehicles with Intensive cleaning |
=Yes |
|||||||||
| 02 | Wiper switch | 1 | 03/1999 | 61318375407 | $97.81 | Shop at ECS Tuning | ||||
| 03 | Switch unit steering column | 1 | 03/1999 | 61318379091 | $144.02 | Shop at ECS Tuning | ||||
| additionally contains slip ring | ||||||||||
| 04 | Switch adjuster steering column | 1 | 03/1999 | 61318373901 | $97.81 | Shop at ECS Tuning | ||||
| 05 | Spacer, adhesive | 12.7X10X3.8 | 1 | 07/2001 | 51318172242 | $0.58 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Steering column switch?
- This technical diagram illustrates the Steering column switch within the Vehicle electrical system group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Switch turn signal,dip-dim control (Part #61318363668).
- Which models use the hardware listed in this Steering column switch?
- The hardware and components featured in the Steering column switch are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Switch turn signal,dip-dim control (61318363668) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column switch assembly?
- Each item in the Steering column switch corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Switch turn signal,dip-dim control by locating its position on the schematic, which then links to the official BMW part number 61318363668 for the Vehicle electrical system section.
