Switch, seat adjustment for BMW 5 Series E39 528i (2000)

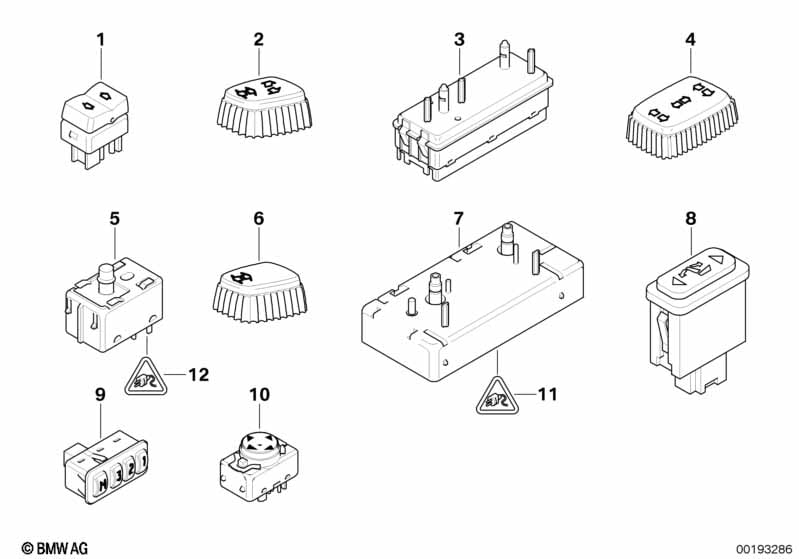

This Switch, seat adjustment technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper backrest adjustment switch | 1 | 61318352732 | $60.61 | Shop at ECS Tuning | |||||
| 02 | Front left backrest adjustment button | 1 | 61311379367 | $4.42 | Shop at ECS Tuning | |||||
| 02 | Front right backrest adjustment button | 1 | 61311379368 | $4.42 | Shop at ECS Tuning | |||||

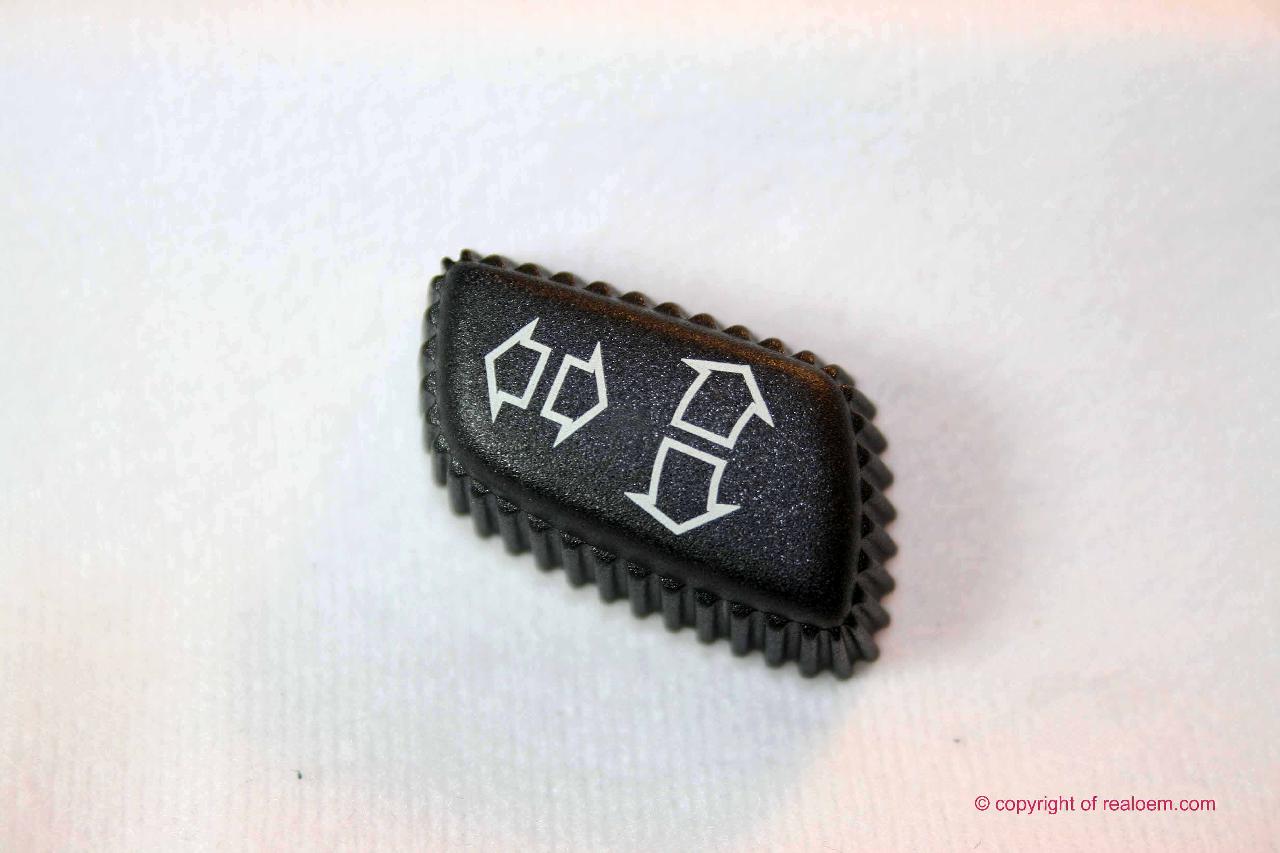

| 02 | Left front A.rear seat adjustment button | 1 | 61318360285 | $4.42 | Shop at ECS Tuning | |||||
| ALSO FOR Backrest adjustment with memory |
||||||||||
| 02 | Right front A.rear seat adjustm.button | 1 | 61318360286 | $4.42 | Shop at ECS Tuning | |||||
| ALSO FOR Backrest adjustment with memory |
||||||||||
| 03 | Switch seat adjusting front left | 1 | 09/1995 | 61318368933 | $154.88 | Shop at ECS Tuning | ||||
| 03 | Switch seat adjusting front right | 1 | 09/1995 | 61318368934 | $154.88 | Shop at ECS Tuning | ||||
| 04 | Button f front seat adjustment | 2 | 61311379369 | $4.42 | Shop at ECS Tuning | |||||
| 04 | Button f front seat adjustm.with memory | 1 | 61318360465 | $4.42 | Shop at ECS Tuning | |||||
| For vehicles with Seat memory |
=Yes |
|||||||||
| 07 | Switch seat adjusting front left | 1 | 09/1997 | 61316910717 | $154.88 | Shop at ECS Tuning | ||||
| 09 | Seat memory switch | 1 | 61318352160 | $101.02 | ENDED | Shop at ECS Tuning | ||||
| 10 | Left lumbar support switch | 1 | 61318352291 | $60.61 | Shop at ECS Tuning | |||||
| 10 | Right lumbar support switch | 1 | 61318360877 | $60.61 | Shop at ECS Tuning | |||||
| 11 | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | X | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Rep. kit for socket housing | 26 POL. | X | 61132471242 | Shop at ECS Tuning | |||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
