Body control units and moduls for BMW 5 Series E39 528i (2000)

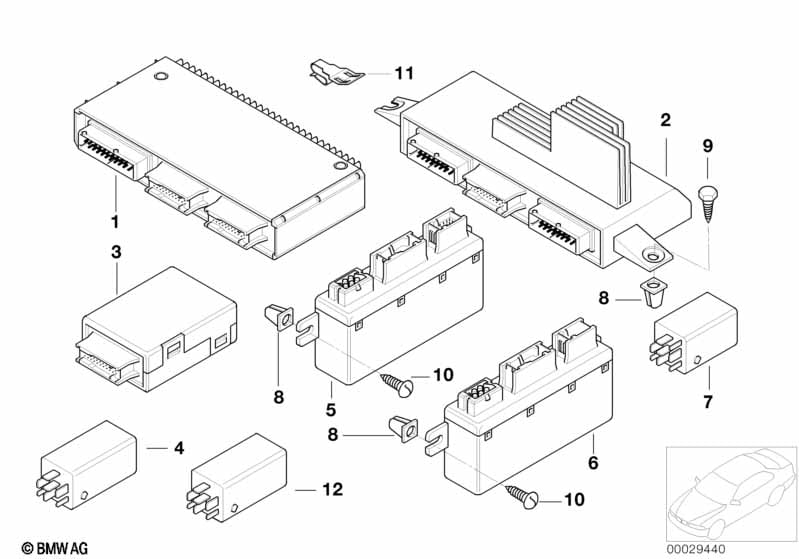

This Body control units and moduls technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Basic module 3 | 1 | 09/1995 | 61356938461 | $363.40 | ENDED | Shop at ECS Tuning | |||
| 02 | Light and check-control module | 1 | 09/2000 | 61356961141 | $523.67 | Shop at ECS Tuning | ||||
| 04 | Relay module 2 | 1 | 61351383417 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| 06 | Door module, co-driver | 1 | 61356904242 | $293.25 | Shop at ECS Tuning | |||||
| 07 | Relay for consumer shutdown | 1 | 61358365960 | $47.49 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | ST 4.8 | 1 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | ST4,8X16-ZNS3 | 1 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST4,8X19-Z1 | 4 | 07119906765 | $0.56 | Shop at ECS Tuning | ||||
| 11 | Clamp f light and check-control module | 1 | 07149145866 | $0.49 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Body control units and moduls?
- This technical diagram illustrates the Body control units and moduls within the Vehicle electrical system group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Basic module 3 (Part #61356938461).
- Which models use the hardware listed in this Body control units and moduls?
- The hardware and components featured in the Body control units and moduls are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Basic module 3 (61356938461) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Body control units and moduls assembly?
- Each item in the Body control units and moduls corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Basic module 3 by locating its position on the schematic, which then links to the official BMW part number 61356938461 for the Vehicle electrical system section.
