Body control units and moduls for BMW 5 Series E39 525d (2003)

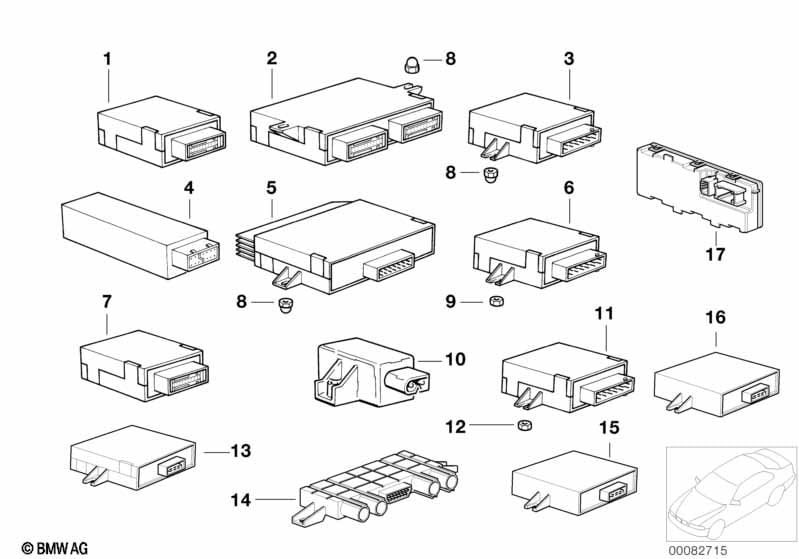

This Body control units and moduls technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Trailer towing modul | 1 | 09/1997 | 61356955253 | $203.91 | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light |
=Yes |
|||||||||
| 07 | Unit control for head light aim control | 1 | 61358375964 | $244.38 | Shop at ECS Tuning | |||||
| 08 | Cap nut | M5 | X | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 10 | Emergency switch | 1 | 61318350284 | $64.14 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 11 | control unit, automatic lug.-comp. lid | 1 | 61356909664 | $174.56 | Shop at ECS Tuning | |||||
| For vehicles with Active seat for driver and Seat adjuster, electric, with memory |
S451A=Yes S459A=No |
|||||||||
| 17 | Control unit, active seat ventilation | 1 | 09/2000 | 61356911201 | $209.49 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat adjustment, electric, driver's side and Comfort seat with memory and Seat adjuster, electric, with memory |
S455A=Yes S456A=Yes S459A=No |
|||||||||
| 17 | Control unit, active seat ventilation | 1 | 09/2000 | 61356901558 | $209.49 | Shop at ECS Tuning | ||||
| For vehicles with Seat adjustment, electric, driver's side and Comfort seat with memory and Seat adjuster, electric, with memory |
S455A=Yes S456A=No S459A=Yes |
|||||||||
| 17 | Control unit, active seat ventilation | 1 | 09/2000 | 61356901558 | $209.49 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Seat adjustment, electric, driver's side and Comfort seat with memory and Seat adjuster, electric, with memory |
S451A=Yes S455A=No S456A=No S459A=Yes |
|||||||||
| 17 | Control unit, active seat ventilation | 1 | 09/2000 | 61356901558 | $209.49 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Seat adjustment, electric, driver's side and Comfort seat with memory and Seat adjuster, electric, with memory |
S451A=No S455A=Yes S456A=Yes S459A=No |
|||||||||
| 17 | Control unit, active seat ventilation | 1 | 09/2000 | 61356901558 | $209.49 | Shop at ECS Tuning | ||||
| For vehicles with Active seat for driver and Seat adjustment, electric, driver's side and Comfort seat with memory and Seat adjuster, electric, with memory |
S451A=No S455A=Yes S456A=No S459A=Yes |
|||||||||
| 17 | Control unit, active seat ventilation | 1 | 09/2000 | 61356901558 | $209.49 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
