Bracket f body control units and modules for BMW 7 Series E38 740i (2001)

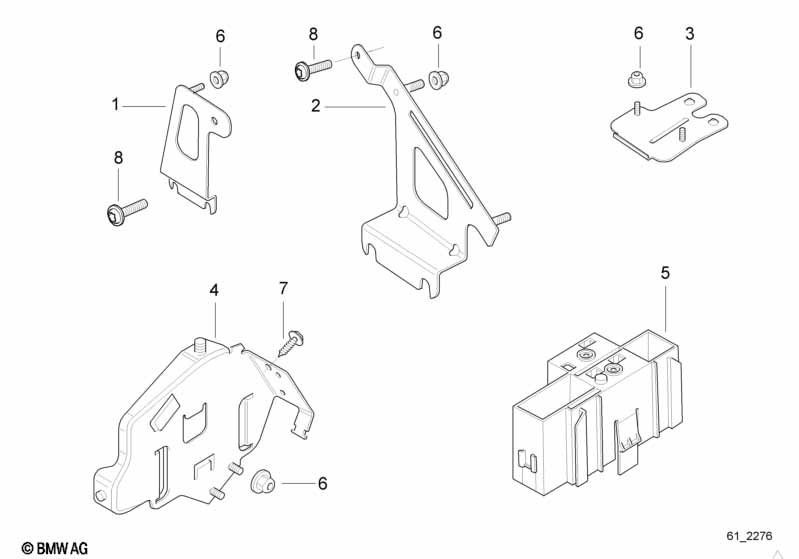

This Bracket f body control units and modules technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trailer towing module bracket | 1 | 09/1997 | 61358375265 | $5.65 | Shop at ECS Tuning | ||||
| 02 | Bracket control unit PDC | 1 | 61138352967 | $10.82 | Shop at ECS Tuning | |||||
| 03 | Steering column control unit bracket | 1 | 61138352797 | $4.37 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket, control unit | 1 | 61138352959 | ENDED | Shop at ECS Tuning | |||||
| 05 | Bracket for module | 1 | 61138352960 | ENDED | Shop at ECS Tuning | |||||
| 06 | Cap nut | M5 | X | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST6,3X25-C-Z1 | X | 07119916972 | Shop at ECS Tuning | |||||
| 08 | Torx bolt | ISA M5X14 | X | 51458117556 | $0.33 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Bracket f body control units and modules?
- This technical diagram illustrates the Bracket f body control units and modules within the Vehicle electrical system group for the 7 Series E38 740i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Trailer towing module bracket (Part #61358375265).
- Which models use the hardware listed in this Bracket f body control units and modules?
- The hardware and components featured in the Bracket f body control units and modules are specific to the 7 Series E38 740i produced during 2001. These technical specifications ensure that parts like the Trailer towing module bracket (61358375265) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bracket f body control units and modules assembly?
- Each item in the Bracket f body control units and modules corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Trailer towing module bracket by locating its position on the schematic, which then links to the official BMW part number 61358375265 for the Vehicle electrical system section.
