Rear seat wiring set for BMW 7 Series E38 735i (2001)

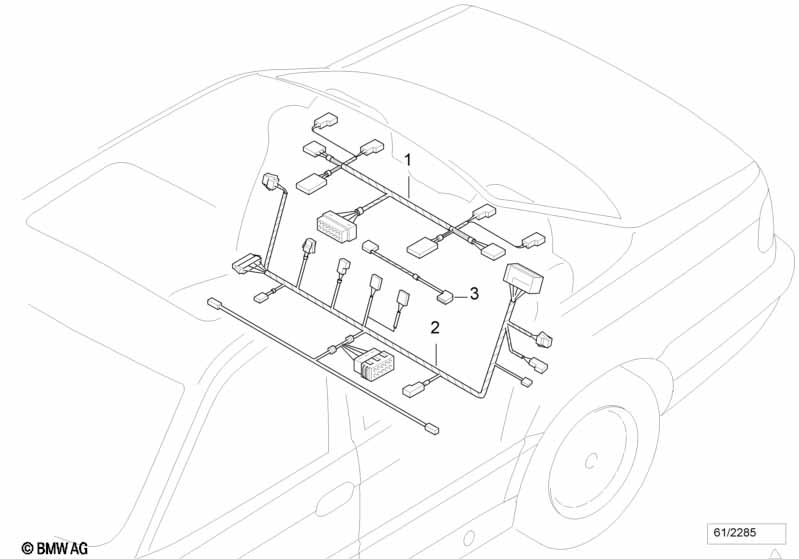

This Rear seat wiring set technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring f rear heatable seat/head rest | 1 | 09/1995 | 61128370797 | $59.03 | Shop at ECS Tuning | ||||
| 01 | Wiring electr. seat adjustment rear | 1 | 09/1995 | 61128370798 | $95.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Current supply wiring set | 1 | 09/1995 | 61128370335 | $90.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Seat, electrically adjustable |
=Yes |
|||||||||
| 02 | Current supply wiring set | 1 | 09/1995 | 61128370338 | $182.42 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Rear compartment equipment |
P446A=Yes |
|||||||||
| 03 | Center arm rest wiring harness | 1 | 61128362648 | $41.85 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Rear compartment equipment and Second receiver at rear for BMW Phone |
P446A=No S622A=Yes |
|||||||||
| 03 | Center arm rest wiring harness | 1 | 61128379215 | $7.37 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
