Microswitch for BMW 5 Series E39 525d (2003)

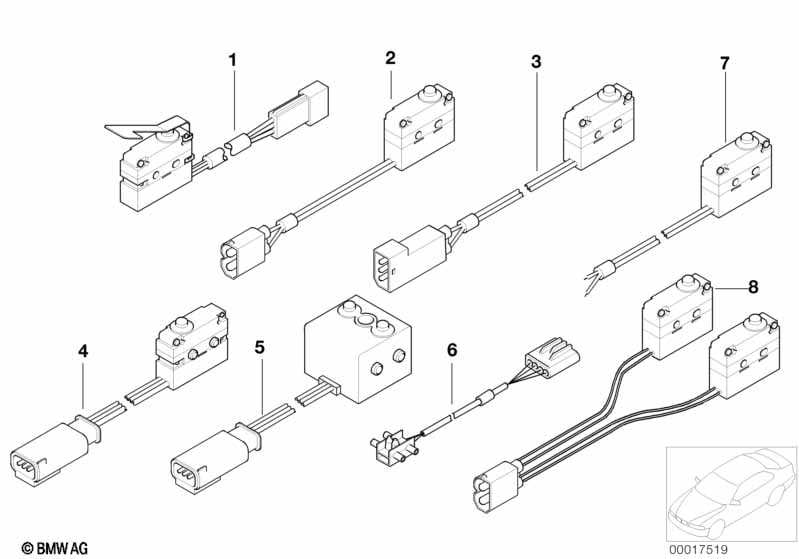

This Microswitch technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Microswitch | 1 | 61311394328 | $38.47 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Microswitch clip | 1 | 61311374027 | $0.30 | Shop at ECS Tuning | |||||
| 04 | Micro switch door catch | 4 | 61318360878 | $38.47 | ENDED | Shop at ECS Tuning | ||||
| 05 | Micro switch door catch | 1 | 61318365953 | $38.47 | ENDED | Shop at ECS Tuning | ||||
| 06 | Microswitch tailgate latch | 1 | 61318363699 | $38.47 | +core | Shop at ECS Tuning | ||||
| 07 | Micro switch, trunk lid key button | 1 | 51138185792 | $38.91 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d Microswitch?
- This technical diagram illustrates the Microswitch within the Vehicle electrical system group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Microswitch (Part #61311394328).
- Which models use the hardware listed in this Microswitch?
- The hardware and components featured in the Microswitch are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the Microswitch (61311394328) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Microswitch assembly?
- Each item in the Microswitch corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the Microswitch by locating its position on the schematic, which then links to the official BMW part number 61311394328 for the Vehicle electrical system section.
