Single parts for head lamp cleaning for BMW 7 Series E38 740iL

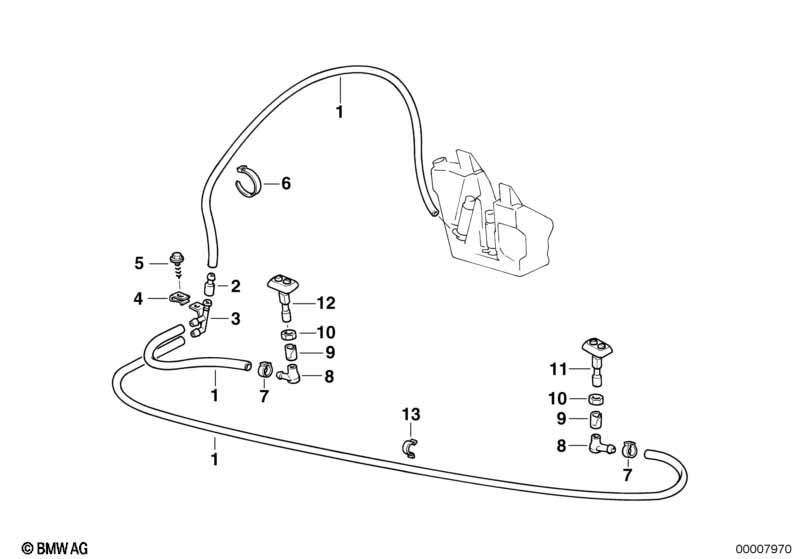

This Single parts for head lamp cleaning technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose line | D= 10MM | X | 61671379530 | $5.85 | Shop at ECS Tuning | ||||
| 02 | Connection piece | 1 | 61668360181 | $7.45 | Shop at ECS Tuning | |||||
| 03 | Connector | 1 | 61668360182 | $6.60 | Shop at ECS Tuning | |||||
| 04 | C-clip nut | 1 | 07146955207 | $0.29 | Shop at ECS Tuning | |||||
| 05 | Hex head screw | ST4,8X22-C-Z2 | 1 | 07119916944 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Cable tie | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | 15.5-18MM | X | 16131179065 | $0.67 | Shop at ECS Tuning | ||||
| 08 | Valve | 2 | 61671378629 | $15.17 | Shop at ECS Tuning | |||||
| 09 | Sleeve f spraying nozzle | 2 | 61678360142 | $0.70 | Shop at ECS Tuning | |||||
| 10 | Hex nut | 2 | 09/1995 | 61671378633 | $0.37 | Shop at ECS Tuning | ||||
| 11 | Spray nozzle left | 1 | 61678352895 | $37.35 | Shop at ECS Tuning | |||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||

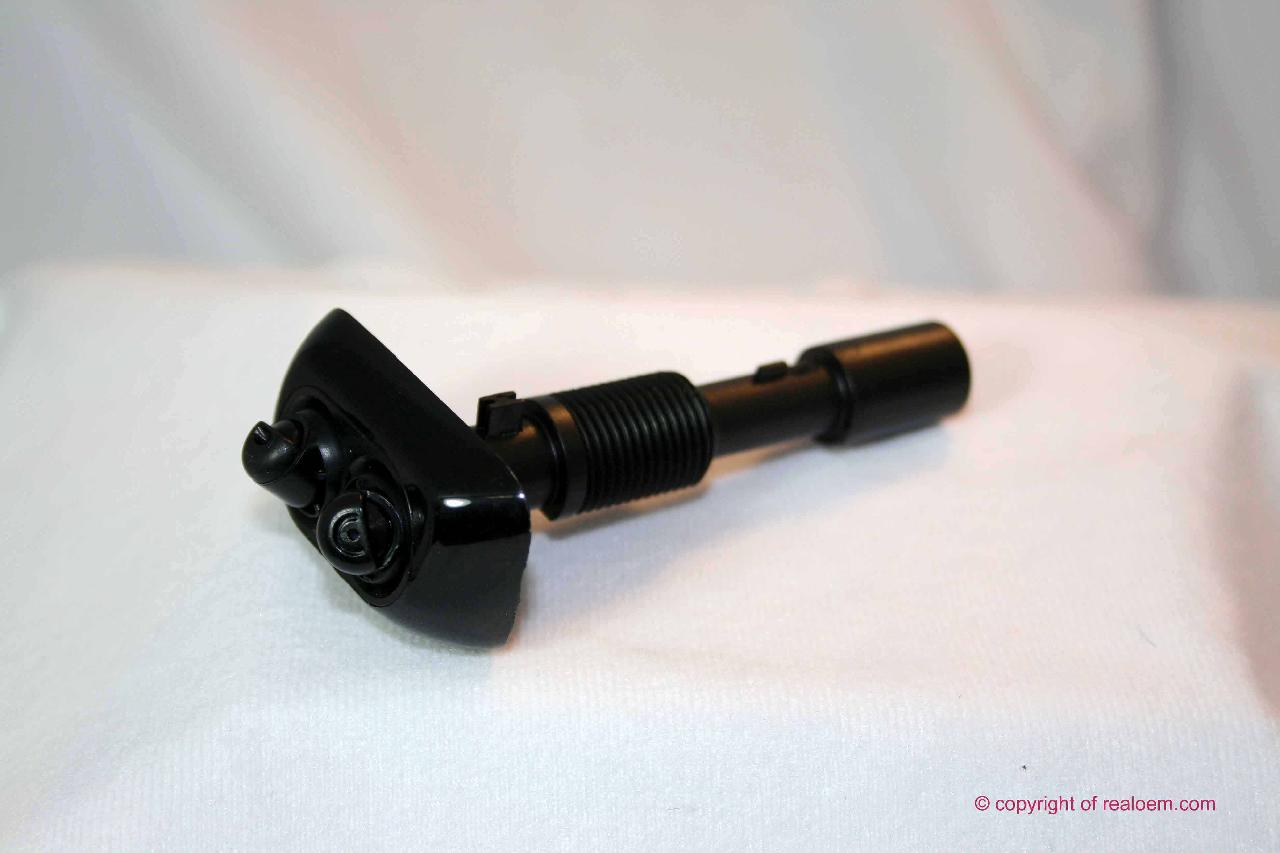

| 11 | Spray nozzle left | 1 | 61678370559 | $37.35 | Shop at ECS Tuning | |||||
| 12 | Spray nozzle right | 1 | 61678352896 | $37.35 | Shop at ECS Tuning | |||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 12 | Spray nozzle right | 1 | 61678370560 | $37.35 | Shop at ECS Tuning | |||||

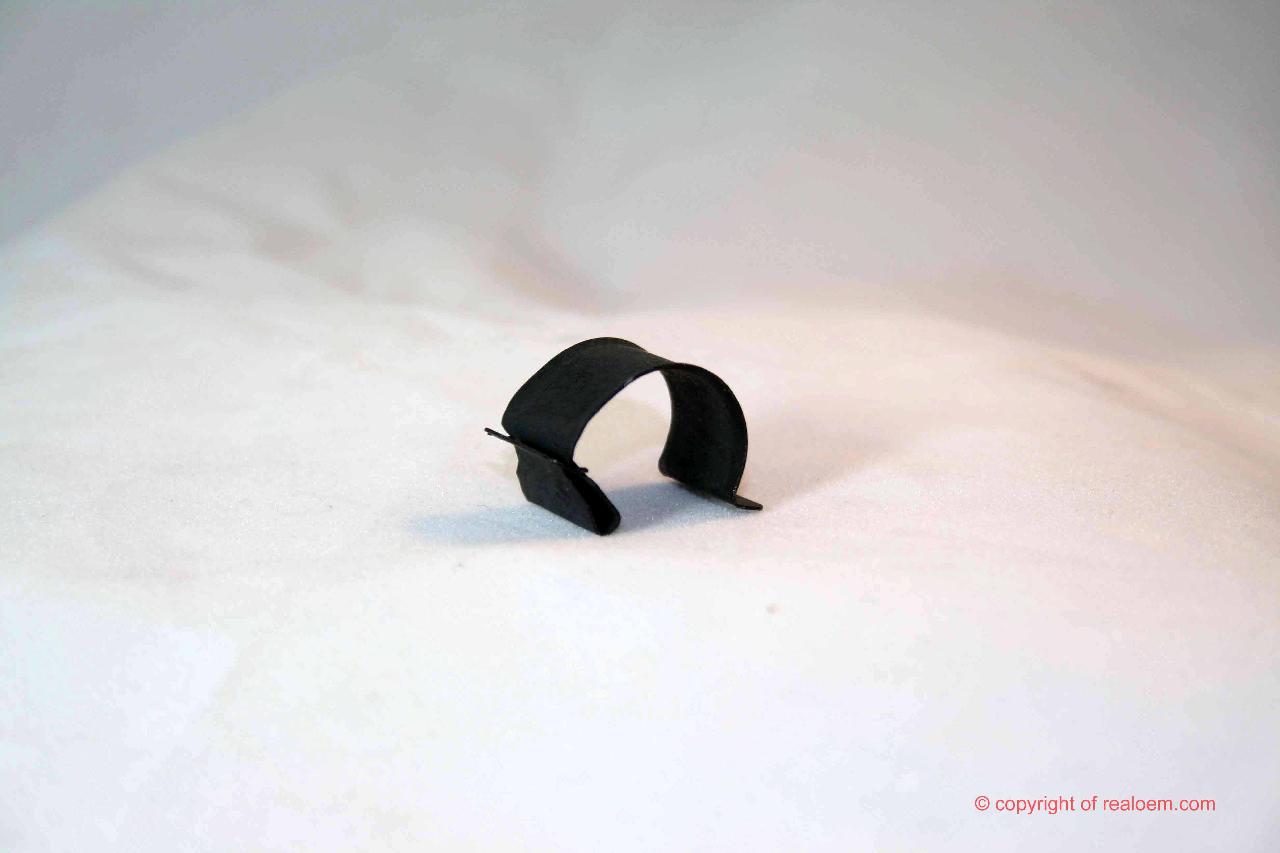

| 13 | Hose clamp | 6 | 61668360140 | $0.40 | Shop at ECS Tuning | |||||
