Windshield cleaning container for BMW 7 Series E38 735i (2001)

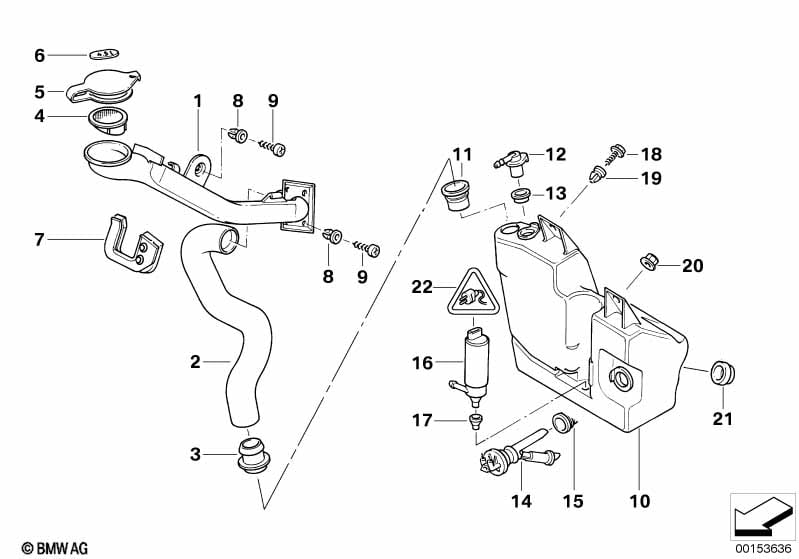

This Windshield cleaning container technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upper filler pipe | 1 | 61668352901 | $34.28 | +core | Shop at ECS Tuning | ||||
| 02 | Bottom filler pipe | 1 | 61668352902 | $34.28 | +core | Shop at ECS Tuning | ||||
| 03 | Connector f filler pipe | 1 | 61668360135 | $9.65 | Shop at ECS Tuning | |||||
| 04 | Dirt strainer | 1 | 61668360466 | $3.83 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover f filler pipe | 1 | 61662457039 | ENDED | Shop at ECS Tuning | |||||
| 06 | Container filling capacity label | 4,5L | 1 | 61668361560 | $4.67 | Shop at ECS Tuning | ||||
| 07 | Filler pipe grommet f cleaning system | 1 | 61668360487 | $2.55 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,8X16-Z1 | X | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Fluid container | 1 | 61668352898 | $52.60 | Shop at ECS Tuning | |||||
| 11 | Fluid container grommet | 1 | 61668360479 | $5.75 | Shop at ECS Tuning | |||||
| 12 | Valve f windshield cleaning | 1 | 61668361370 | $17.72 | Shop at ECS Tuning | |||||
| 13 | Rubber grommet | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 14 | Levelling switch wash container | 1 | 61318360459 | $32.46 | Shop at ECS Tuning | |||||
| 15 | Rubber grommet | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 16 | Washer pump rear | 1 | 09/1997 | 67128362154 | $42.75 | Shop at ECS Tuning | ||||
| 17 | Gasket | 1 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 18 | Hex head screw | ST6,3X22-C-Z2 | 1 | 07119916971 | $0.30 | Shop at ECS Tuning | ||||
| 18 | Hex head screw with washer | ST-6,3X22 | 1 | 07119901515 | $0.30 | Shop at ECS Tuning | ||||
| 19 | Expanding nut | ST 6.3 | 1 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 20 | Plastic nut for coarse threaded pin | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 21 | Grommet | 1 | 61668360138 | $0.75 | Shop at ECS Tuning | |||||
| 22 | Universal socket housing uncoded | 2 POL. | 1 | 61138364520 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact, MDK3 w. wire | 0,5-1,0 MM² AG | 2 | 61130070586 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
