Windshield cleaning container(intensive) for BMW 7 Series E38 L7 (1998)

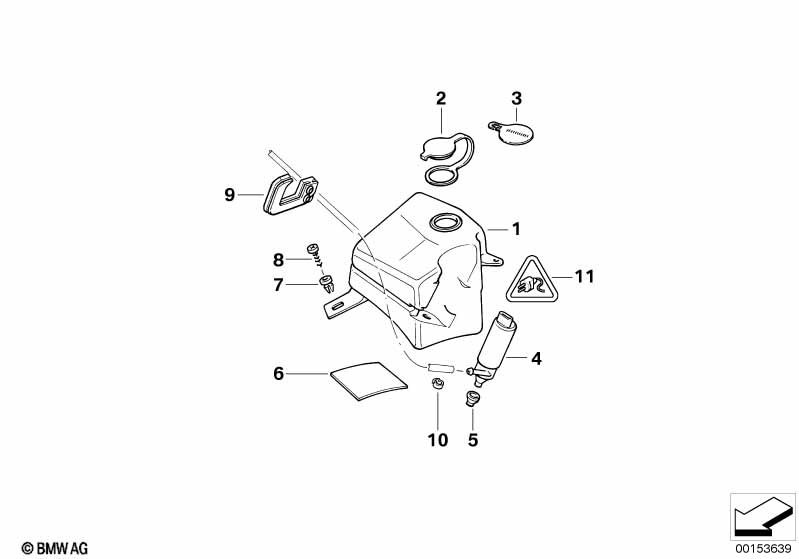

This Windshield cleaning container(intensive) technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container f intensive cleaner | 1 | 61668352899 | $47.69 | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 61661369516 | $1.88 | Shop at ECS Tuning | |||||
| 03 | Label "concentrated cleaner" | 1 | 51141885911 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 04 | Washer pump rear | 1 | 09/1997 | 67128362154 | $42.75 | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 06 | Base | 1 | 16111180163 | $1.08 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | ST 4.8 WEISS | 1 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST4,8X16-Z1 | 1 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Universal socket housing uncoded | 2 POL. | 1 | 61138364520 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact, MDK3 w. wire | 0,5-1,0 MM² AG | 2 | 61130070586 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
