Single parts for rear window wiper for BMW 3 Series E36 316i (1999)

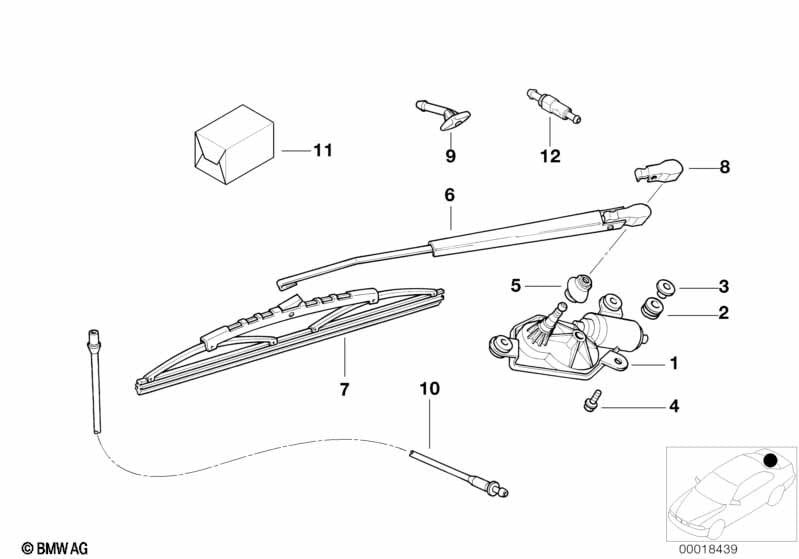

This Single parts for rear window wiper technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window wiper motor | 1 | 61628360154 | $184.14 | Shop at ECS Tuning | |||||
| 02 | Damper ring f rear window wiper motor | 3 | 61628214659 | $2.27 | Shop at ECS Tuning | |||||
| 03 | Bearing sleeve f rear window wiper motor | 3 | 61628214661 | $1.14 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X16-Z3-2 | 3 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Grommet f rear window wiper motor | 1 | 61628361252 | Shop at ECS Tuning | ||||||
| 06 | Wiper arm | 1 | 61628360156 | Shop at ECS Tuning | ||||||
| 07 | Wiper blade | 1 | 61627140957 | Shop at ECS Tuning | ||||||
| 08 | Wiper arm cover | 1 | 61628360157 | Shop at ECS Tuning | ||||||
| 09 | Spray nozzle f rear window cleaning | 1 | 61688361639 | $3.63 | Shop at ECS Tuning | |||||
| 10 | Hose line | 1 | 61688361801 | $25.39 | Shop at ECS Tuning | |||||
| 12 | Valve f windshield cleaning | 1 | 61688391402 | $4.35 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bush | SERVICE | 1 | 61688248025 | Shop at ECS Tuning | |||||
