Single parts for head lamp cleaning for BMW 5 Series E39 525d (2003)

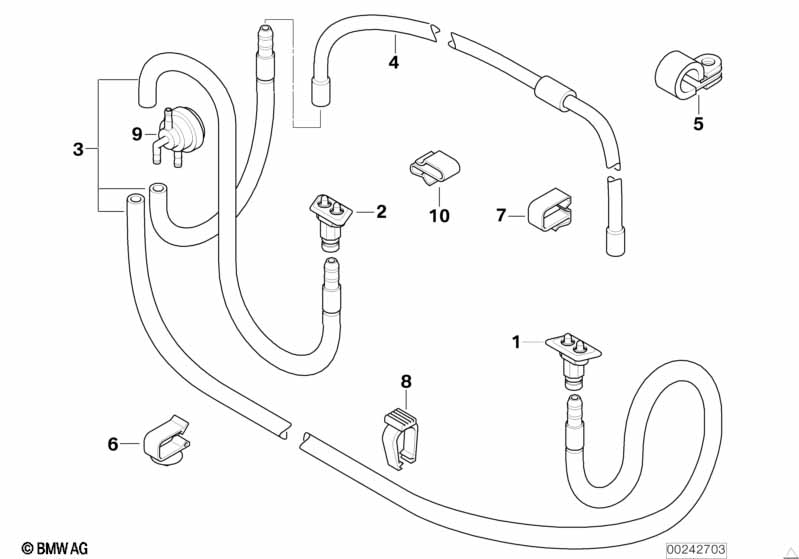

This Single parts for head lamp cleaning technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spray nozzle left | 1 | 61678360661 | $28.70 | Shop at ECS Tuning | |||||
| 02 | Spray nozzle right | 1 | 61678360662 | $28.70 | Shop at ECS Tuning | |||||
| 03 | Hose line | 1 | 09/2000 | 61677033036 | $43.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Hose line | 1 | 09/1997 | 61678380983 | $24.55 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable clip | X | 61138350836 | $0.42 | Shop at ECS Tuning | |||||
| 07 | Holder | X | 61131387626 | $0.57 | Shop at ECS Tuning | |||||
| 08 | Clip, hose | 8 | 61670004457 | $1.25 | Shop at ECS Tuning | |||||

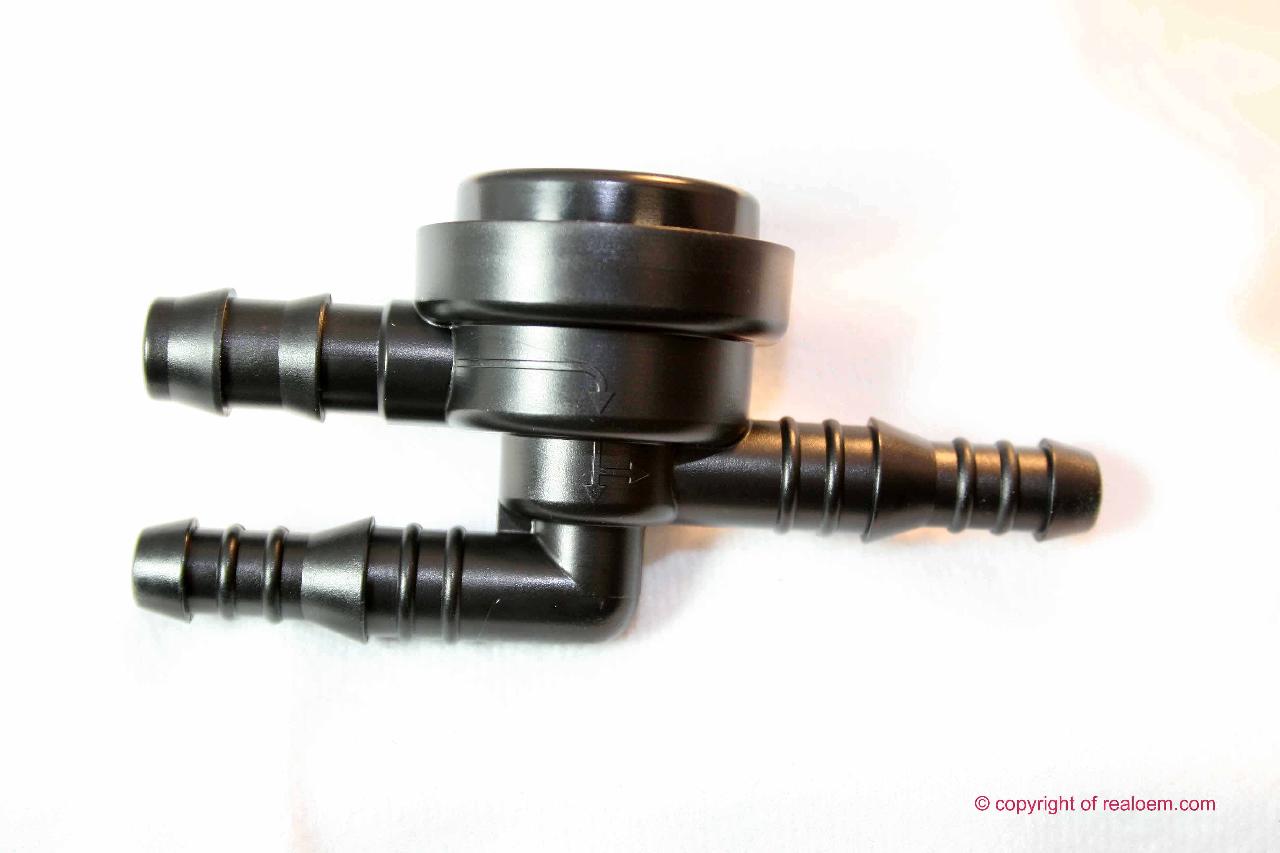

| 09 | Distribution piece | 1 | 61668361447 | $9.57 | Shop at ECS Tuning | |||||
| 10 | Clip | X | 12521437136 | $0.63 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
