Parts f intensive windshield cleaning for BMW 5 Series E39 525i (2003)

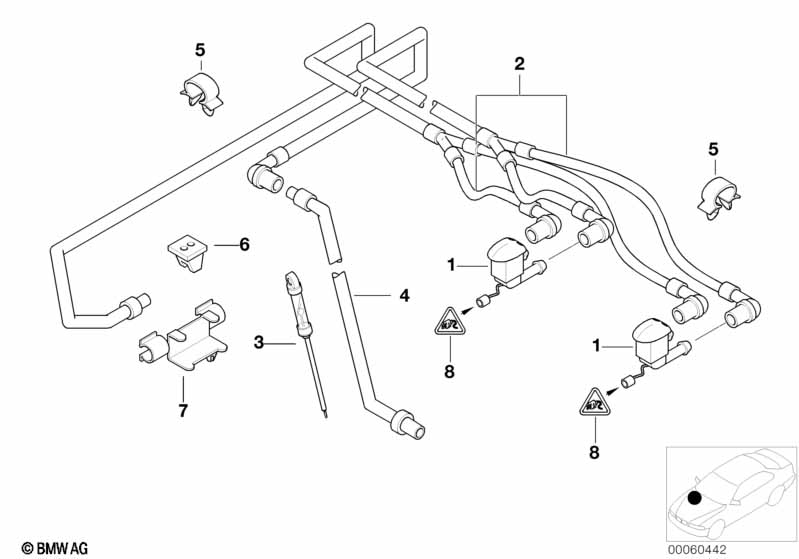

This Parts f intensive windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heated spray nozzle | 2 | 61668361042 | $37.35 | Shop at ECS Tuning | |||||
| 02 | Intensive cleaning system hose | 1 | 61608364209 | $59.75 | Shop at ECS Tuning | |||||
| COMPRISES AMONG OTHERS WIRING SET |
||||||||||
| 03 | Level indicator upper part | 1 | 61608364188 | $23.15 | Shop at ECS Tuning | |||||
| 04 | Reservoir hose | 1 | 61668361041 | $7.77 | Shop at ECS Tuning | |||||
| 05 | Cable holder | D=14,3 | X | 12521733330 | $0.92 | Shop at ECS Tuning | ||||
| 06 | Gasket | 1 | 61668364190 | $1.53 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 61668364203 | $2.18 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rep. kit for socket housing | 2 POL. | 2 | 61132359999 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Parts f intensive windshield cleaning?
- This technical diagram illustrates the Parts f intensive windshield cleaning within the Vehicle electrical system group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Heated spray nozzle (Part #61668361042).
- Which models use the hardware listed in this Parts f intensive windshield cleaning?
- The hardware and components featured in the Parts f intensive windshield cleaning are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Heated spray nozzle (61668361042) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Parts f intensive windshield cleaning assembly?
- Each item in the Parts f intensive windshield cleaning corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Heated spray nozzle by locating its position on the schematic, which then links to the official BMW part number 61668361042 for the Vehicle electrical system section.
