Main wiring harness for BMW 5 Series E39 528i (2000)

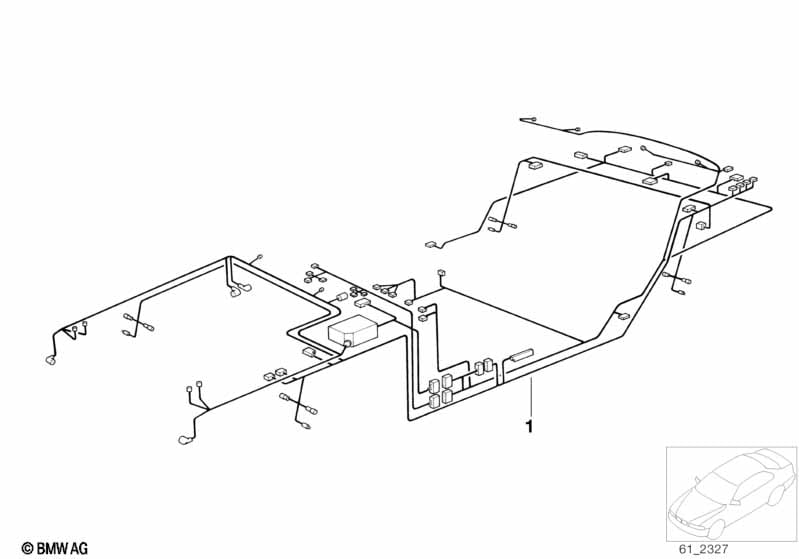

This Main wiring harness technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | vehicles without xenon lights REQUIRE ALSO 61 11 8 364 310 headlight aim control wiring set |
|||||||||
| 01 | Main wiring harness | 1 | 03/2000 | 09/2000 | 61116908435 | ENDED | Shop at ECS Tuning | |||
| For vehicles with On-board computer V with remote control or On-board monitor with TV or Navigation system Professional only applies to SA 555 or SA 602 or SA 609 |
S555A=Yes S602A=Yes S609A=Yes |
|||||||||
| 01 | Main wiring harness | 1 | 03/2000 | 09/2000 | 61116908436 | ENDED | Shop at ECS Tuning | |||
