Single components for fuse box for BMW 5 Series E39 523i (2000)

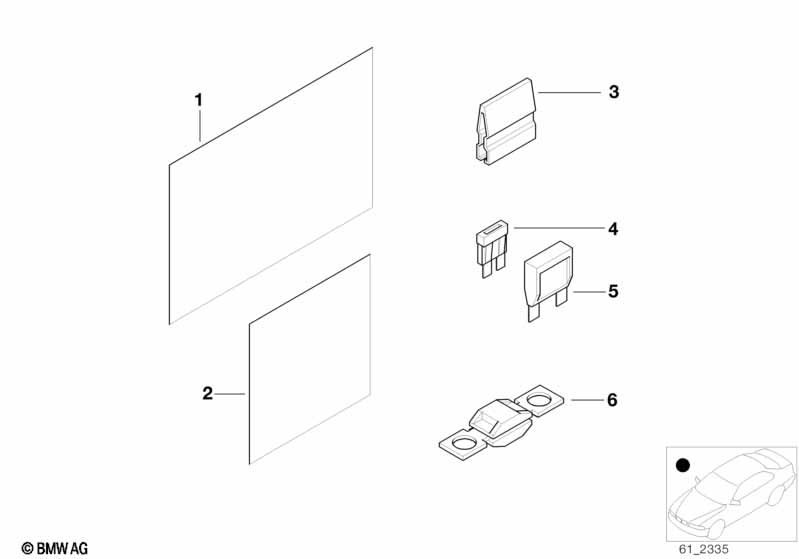

This Single components for fuse box technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | PARTS F CTRL UNIT BOX, REFER TO HG-12 | |||||||||
| 01 | Glove box stick-on label f fuse grouping | ENGLISH | 1 | 09/1998 | 09/2000 | 61138384689 | $9.00 | Shop at ECS Tuning | ||
| 02 | Stick-on label, fuse grouping, rear | ENGLISH | 1 | 09/1998 | 09/2000 | 61138384695 | $3.33 | Shop at ECS Tuning | ||
| 03 | Fuse clip | 1 | 61131379583 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fuse red | 10A | X | 07/2017 | 61131372525 | Shop at ECS Tuning | ||||
| 04 | Fuse | 30A | X | 07/2017 | 61131372628 | $0.75 | ENDED | Shop at ECS Tuning | ||
| 04 | Fuse light brown | 5A | X | 61131372523 | Shop at ECS Tuning | |||||
| 04 | Fuse blue | 15A | X | 61131372526 | Shop at ECS Tuning | |||||
| 04 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 04 | Fuse green | 30A | X | 61131372529 | Shop at ECS Tuning | |||||
| 04 | Fuse | 5A | X | 61131386626 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Fuse orange | 40A | X | 61138364543 | $0.81 | Shop at ECS Tuning | ||||
| 05 | Fuse Maxi, blue | 60A | X | 61136914636 | $2.15 | Shop at ECS Tuning | ||||
| 05 | Fuse Maxi, orange | 40A | X | 61138367132 | $1.83 | Shop at ECS Tuning | ||||
| 05 | Fuse Maxi, green | 30A | X | 61138367146 | $2.78 | Shop at ECS Tuning | ||||
| 05 | Fuse Maxi, red | 50A | X | 61138367154 | $2.15 | Shop at ECS Tuning | ||||
| 06 | Fuse | 100A | X | 61138364631 | $2.93 | Shop at ECS Tuning | ||||
| 06 | Fuse | 50A | X | 61138365901 | $2.42 | Shop at ECS Tuning | ||||
| 06 | Fuse | 80A | X | 61138365903 | $2.42 | Shop at ECS Tuning | ||||
| 06 | Fuse | 200A | X | 61138365905 | $8.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Single components for fuse box?
- This technical diagram illustrates the Single components for fuse box within the Vehicle electrical system group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Glove box stick-on label f fuse grouping (Part #61138384689).
- Which models use the hardware listed in this Single components for fuse box?
- The hardware and components featured in the Single components for fuse box are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Glove box stick-on label f fuse grouping (61138384689) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single components for fuse box assembly?
- Each item in the Single components for fuse box corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Glove box stick-on label f fuse grouping by locating its position on the schematic, which then links to the official BMW part number 61138384689 for the Vehicle electrical system section.
