Various cable holders for BMW 5 Series E39 528i (2000)

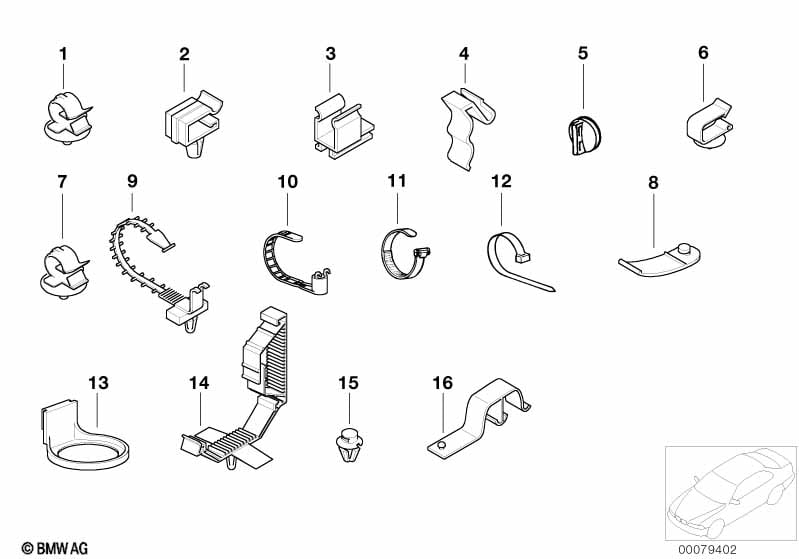

This Various cable holders technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clip retainer | X | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 02 | Cable holder | X | 61138353135 | $0.35 | Shop at ECS Tuning | |||||
| 03 | Tubing support | D=10,8MM | X | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Cable holder | X | 54128193188 | $0.32 | Shop at ECS Tuning | |||||
| 05 | Push-button | X | 61131373669 | $0.93 | Shop at ECS Tuning | |||||
| 06 | Cable clip | X | 61138350836 | $0.42 | Shop at ECS Tuning | |||||
| 07 | Clip retainer | X | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 08 | Cable holder | X | 61138354160 | $0.48 | Shop at ECS Tuning | |||||
| 09 | Cable tie | X | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 10 | Cable tie | L=119MM | X | 61138357028 | Shop at ECS Tuning | |||||
| 11 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Cable tie | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 13 | Diagnosis plug bracket | DIAGNOSE | X | 12521714344 | $2.82 | Shop at ECS Tuning | ||||
| 14 | Cable holder | X | 61138350835 | $0.63 | Shop at ECS Tuning | |||||
| 15 | Cable strap bracket | X | 61138353536 | $0.44 | Shop at ECS Tuning | |||||
| 16 | Cable holder | X | 61131387089 | $0.35 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Various cable holders?
- This technical diagram illustrates the Various cable holders within the Vehicle electrical system group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Clip retainer (Part #61138368029).
- Which models use the hardware listed in this Various cable holders?
- The hardware and components featured in the Various cable holders are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Clip retainer (61138368029) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various cable holders assembly?
- Each item in the Various cable holders corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Clip retainer by locating its position on the schematic, which then links to the official BMW part number 61138368029 for the Vehicle electrical system section.
