Single parts for rear window wiper for BMW 5 Series E39 523i (2000)

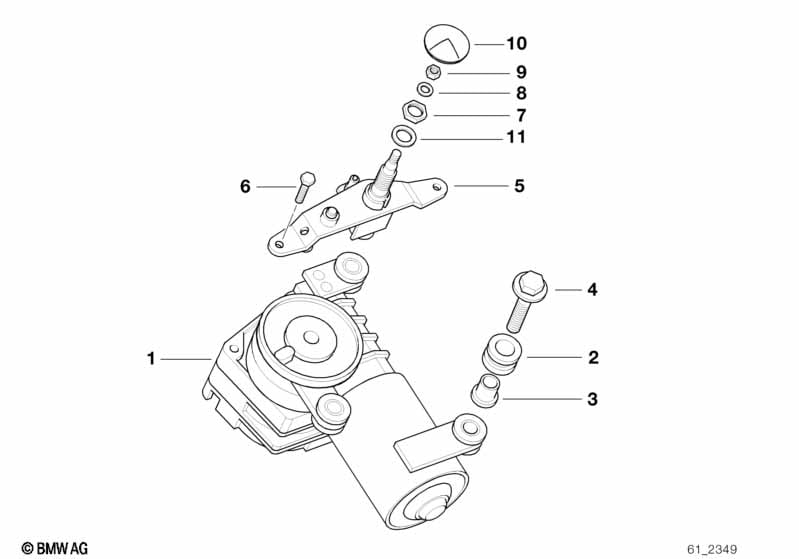

This Single parts for rear window wiper technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window wiper motor | 1 | 61628361640 | $313.31 | Shop at ECS Tuning | |||||
| 02 | Damper ring f rear window wiper motor | 3 | 61628218775 | $0.75 | Shop at ECS Tuning | |||||
| 03 | Bearing sleeve f rear window wiper motor | 3 | 61628218779 | $1.03 | Shop at ECS Tuning | |||||
| 05 | Wipershaft pivot | 1 | 03/1998 | 61627067893 | $46.85 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Hex nut | 1 | 61627066415 | $2.32 | Shop at ECS Tuning | |||||
| 08 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 11 | Washer | 1 | 61627066407 | $0.15 | Shop at ECS Tuning |
