Single parts for rear window cleaning for BMW 5 Series E39 525d (2003)

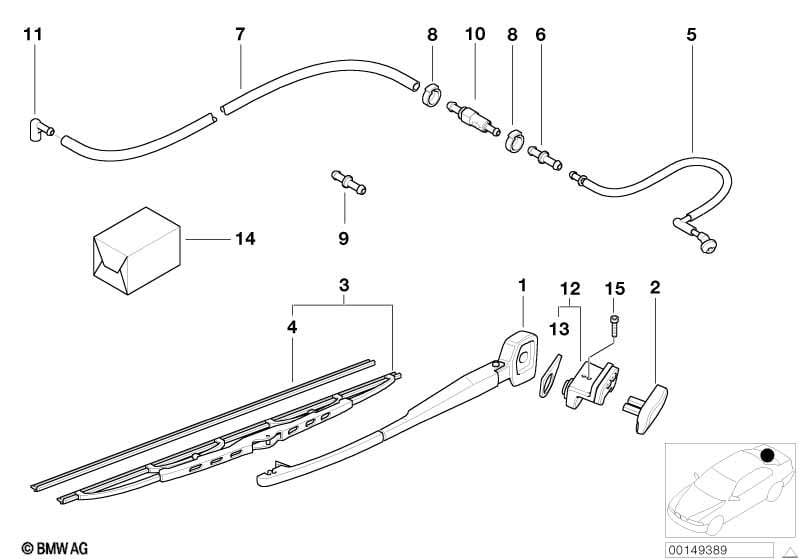

This Single parts for rear window cleaning technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window wiper arm | 1 | 61628221453 | $26.53 | Shop at ECS Tuning | |||||
| 02 | Cover f rear window key button | 1 | 61318372074 | $8.90 | Shop at ECS Tuning | |||||
| 03 | Wiper blade | 1 | 61627074477 | $24.58 | Shop at ECS Tuning | |||||
| 04 | Wiper rubber | 1 | 61628239164 | $6.64 | Shop at ECS Tuning | |||||
| 05 | Spray nozzle with hose | 1 | 61688224840 | $13.48 | Shop at ECS Tuning | |||||
| ONLY FOR HOSE REPAIR | ||||||||||
| 06 | Connection piece | X | 61661382908 | $0.48 | Shop at ECS Tuning | |||||
| 07 | Hose line | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | 8-9.5MM | X | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 09 | Connection pipe | 1 | 61688391876 | $0.42 | Shop at ECS Tuning | |||||
| 10 | Valve f windshield cleaning | 1 | 61688391402 | $4.35 | Shop at ECS Tuning | |||||
| 12 | Rear window key button with micro switch | 1 | 61318363631 | $38.47 | Shop at ECS Tuning | |||||
| Contains screw for cover | ||||||||||
| 13 | Rear window key button gasket | 1 | 61318372075 | $7.40 | Shop at ECS Tuning | |||||
| 14 | Hose line repair kit | 1 | 61688254288 | $22.87 | Shop at ECS Tuning | |||||
| 15 | Torx screw | M3X14 | 1 | 07146978500 | $1.07 | Shop at ECS Tuning | ||||
