Combination switch at handlebar for BMW R45-R65LS..78-85 R65 (1985)

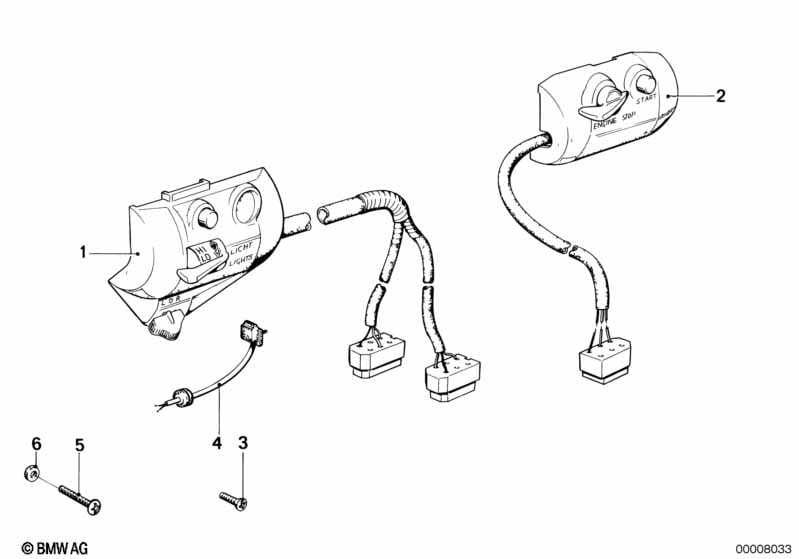

This Combination switch at handlebar technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FOR MAIN LIGHT SWITCH | |||||||||
| 01 | Combination switch left | 1 | 61311244420 | $126.19 | +core | Shop at ECS Tuning | ||||
| 02 | Combination switch right | 1 | 61311244417 | $82.25 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | M4X10-4.8-H | 2 | 07119907616 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Clutch switch | 1 | 61311243403 | $22.46 | +core | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M3X10-4.8-H-ZN | 1 | 07119907604 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Washer | 9X4,3X0,8-200HV | 2 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 06 | Washer | A3,2 | 1 | 07119931015 | $0.09 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
