Plug/plug terminal for BMW R45-R65LS..78-85 R65LS (1985)

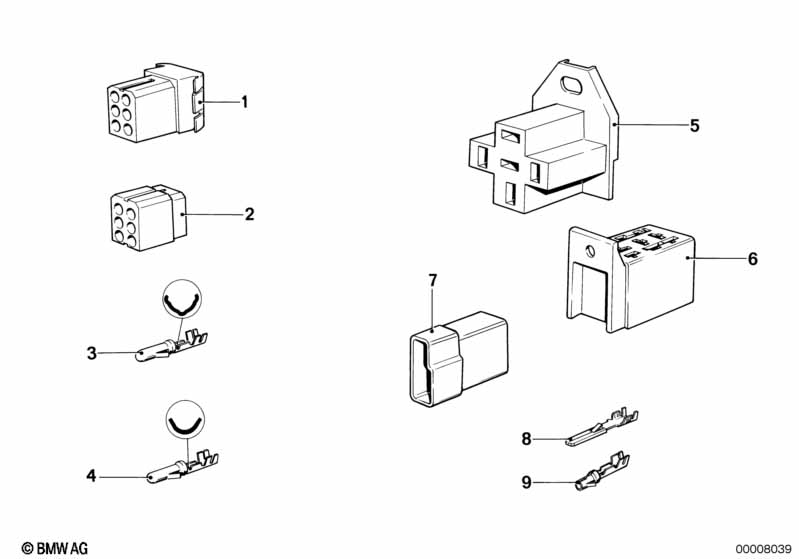

This Plug/plug terminal technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Circular connector | SCHWARZ | X | 61131243292 | $4.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Circular connector | WEISS | X | 61131243293 | $0.93 | ENDED | Shop at ECS Tuning | |||
| 01 | Circular connector | ROT | X | 61131243294 | ENDED | Shop at ECS Tuning | ||||
| 01 | Circular connector | GRAU | X | 61131243295 | $0.93 | ENDED | Shop at ECS Tuning | |||
| 01 | Circular connector | BLAU | X | 61131243676 | $0.89 | ENDED | Shop at ECS Tuning | |||
| 01 | Circular connector | BEIGE | X | 61131243677 | $0.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Circular connector | SCHWARZ | X | 61131243297 | $4.07 | Shop at ECS Tuning | ||||
| 02 | Circular connector | WEISS | X | 61131243298 | $0.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Circular connector | ROT | X | 61131243299 | $0.89 | ENDED | Shop at ECS Tuning | |||
| 02 | Circular connector | GRAU | X | 61131243300 | $0.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Circular connector | BLAU | X | 61131243674 | $4.07 | ENDED | Shop at ECS Tuning | |||
| 02 | Circular connector | BEIGE | X | 61131243675 | ENDED | Shop at ECS Tuning | ||||
| 03 | Circular connector | D3,5 | X | 61131362144 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Plug housing | X | 61131243290 | $1.45 | ENDED | Shop at ECS Tuning | ||||
| 06 | Holder | X | 61131363083 | $2.79 | ENDED | Shop at ECS Tuning | ||||
| 07 | Plug housing | X | 61131357902 | $0.84 | ENDED | Shop at ECS Tuning | ||||
| 08 | Flat-type connector | B=2,8/L=22 | X | 61131357921 | $0.48 | Shop at ECS Tuning | ||||
| 09 | Cable socket round female | D3,5 | X | 61131359289 | $0.63 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
