Battery, authorities for BMW R45-R65LS..78-85 R65T (1985)

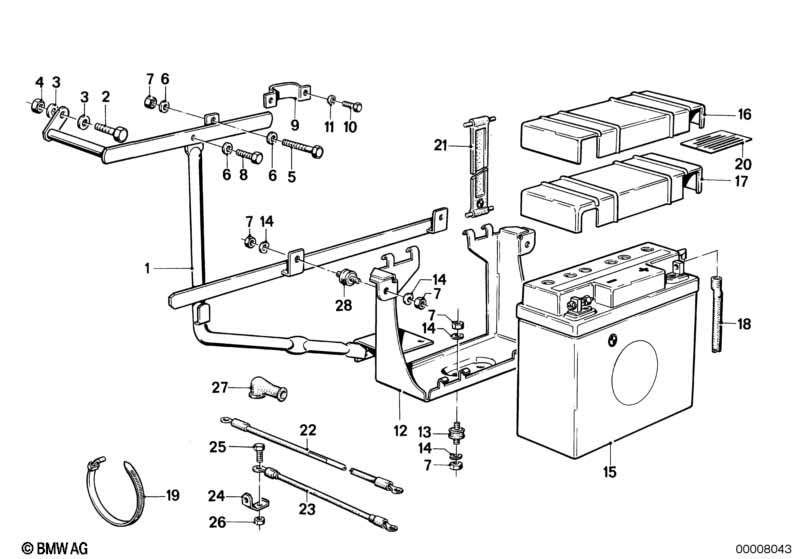

This Battery, authorities technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65T. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Holder | 1 | 09/1980 | 61211244262 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X25-8.8-ZNNIV | 1 | 09/1980 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 03 | Washer | 8,4X18X2MM | 2 | 09/1980 | 07149180923 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 09/1980 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 09/1980 | 07119902976 | $0.45 | Shop at ECS Tuning | |||
| 06 | Washer | A6,4-ZNNIV SI | 4 | 09/1980 | 07119904202 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-8-ZNNIV SI | X | 09/1980 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M6X20-8.8-ZNS | 1 | 09/1980 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | ||
| 09 | Clamp | 1 | 09/1980 | 61211244264 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X10-8.8-ZNS3 | X | 09/1980 | 07119904633 | $0.20 | Shop at ECS Tuning | |||
| 11 | Spring washer Black | B6-ZN | 2 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 11 | Washer | 5.3-140 HV-ZNS | 2 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 11 | Wave washer | B6-ZNS3 | 2 | 09/1980 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 12 | Battery hold down | 1 | 09/1980 | 61211243302 | $38.42 | Shop at ECS Tuning | ||||
| 13 | Rubber Mounting | 4 | 09/1980 | 61211233028 | $13.76 | Shop at ECS Tuning | ||||
| 14 | Spring washer Black | B6-ZN | 8 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 14 | Washer | 5.3-140 HV-ZNS | 8 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 14 | Wave washer | B6-ZNS3 | 8 | 09/1980 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | ||
| 16 | Cap | 1 | 09/1980 | 61211244265 | $2.71 | Shop at ECS Tuning | ||||
| 17 | Cap | 1 | 09/1980 | 61211244290 | $2.71 | Shop at ECS Tuning | ||||
| 19 | Cable tie | L=200MM/B=3,6MM | 3 | 09/1980 | 61131367599 | $0.43 | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 20 | Label "battery" | 1 | 09/1980 | 51141352555 | $1.25 | ENDED | Shop at ECS Tuning | |||
| 21 | Tension strap | 2 | 09/1980 | 61211243562 | $13.85 | Shop at ECS Tuning | ||||
| 22 | Battery cable (plus pole) | 1 | 09/1980 | 61121244261 | $13.98 | ENDED | Shop at ECS Tuning | |||
| 23 | Battery cable negative | 1 | 09/1980 | 61121244475 | $48.45 | Shop at ECS Tuning | ||||
| 24 | Support | 2 | 09/1980 | 61211244367 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 25 | Hex bolt | M6X10 | 2 | 09/1980 | 07119915124 | ENDED | Shop at ECS Tuning | |||
| 26 | Hex nut | M6 | 2 | 09/1980 | 61211459656 | $1.98 | ENDED | Shop at ECS Tuning | ||
| 27 | Cap | 2 | 09/1980 | 61131367099 | ENDED | Shop at ECS Tuning | ||||
| 28 | Rubber Mounting | 2 | 09/1980 | 61211243530 | $13.76 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65T Battery, authorities?
- This technical diagram illustrates the Battery, authorities within the General Electrical System group for the R45-R65LS..78-85 R65T produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Holder (Part #61211244262).
- Which models use the hardware listed in this Battery, authorities?
- The hardware and components featured in the Battery, authorities are specific to the R45-R65LS..78-85 R65T produced during 1985. These technical specifications ensure that parts like the Holder (61211244262) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery, authorities assembly?
- Each item in the Battery, authorities corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65T, you can identify the Holder by locating its position on the schematic, which then links to the official BMW part number 61211244262 for the General Electrical System section.
