Engine wiring harness for BMW R50/5-R90S 69-76 R90S

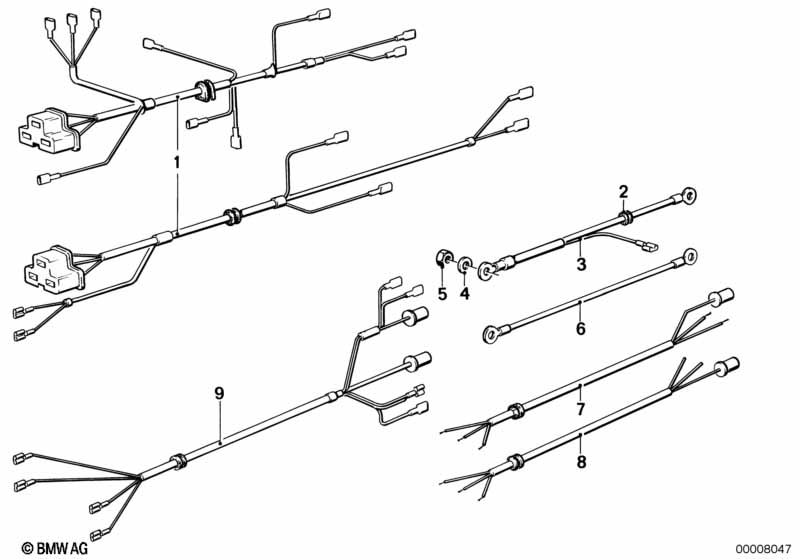

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine wiring harness | 1 | 61111350636 | $46.83 | +core | Shop at ECS Tuning | ||||
| 02 | Rubber grommet | 1 | 61131352095 | $2.80 | Shop at ECS Tuning | |||||
| 03 | Battery cable (plus pole) | 1 | 61121243473 | $48.45 | +core | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8-8-ZNS3 | 1 | 07/1980 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 05 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Battery cable negative | 1 | 61121244475 | $48.45 | Shop at ECS Tuning | |||||
| 07 | Wiring clock | 1 | 61121357697 | $73.15 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Wiring voltmeter | 1 | 61121357703 | $73.15 | +core | Shop at ECS Tuning | ||||
| 09 | Wiring additional instruments | 1 | 61121357591 | $91.04 | +core | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
