Wiring harness sector chassis for BMW R50/5-R90S 69-76 R90S (1976)

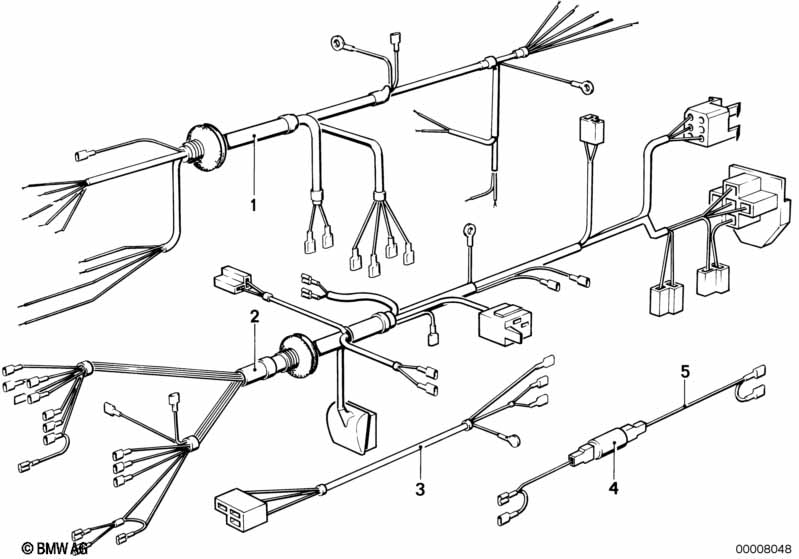

This Wiring harness sector chassis technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wiring harness sector chassis | 1 | 09/1974 | 61111358178 | $365.78 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Wiring transmission-switch | 1 | 61121358107 | $28.57 | Shop at ECS Tuning | |||||
| For vehicles with National version Switzerland |
Y731A=Yes |
|||||||||
| 04 | Diode | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 05 | Wiring brake fluid control | 1 | 61121243096 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R50/5-R90S 69-76 R90S Wiring harness sector chassis?
- This technical diagram illustrates the Wiring harness sector chassis within the General Electrical System group for the R50/5-R90S 69-76 R90S produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Wiring harness sector chassis (Part #61111358178).
- Which models use the hardware listed in this Wiring harness sector chassis?
- The hardware and components featured in the Wiring harness sector chassis are specific to the R50/5-R90S 69-76 R90S produced during 1976. These technical specifications ensure that parts like the Wiring harness sector chassis (61111358178) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiring harness sector chassis assembly?
- Each item in the Wiring harness sector chassis corresponds to the numbered list below the illustration. For the R50/5-R90S 69-76 R90S, you can identify the Wiring harness sector chassis by locating its position on the schematic, which then links to the official BMW part number 61111358178 for the General Electrical System section.
