Various additional wiring sets for BMW R50/5-R90S 69-76 R90S

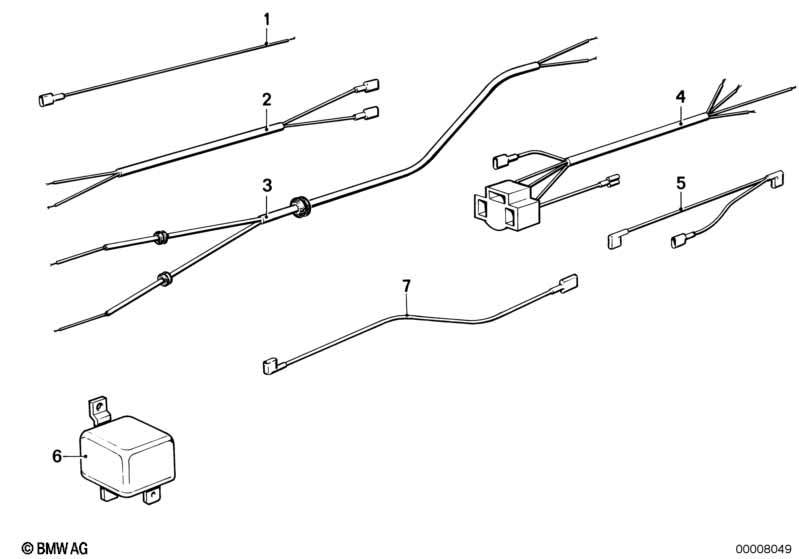

This Various additional wiring sets technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Wiring turn signal rear | 1 | 61121350643 | $13.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wiring turn signal front | 1 | 61121357588 | $9.78 | Shop at ECS Tuning | |||||
| 04 | Wiring head light | 1 | 09/1974 | 61121357456 | $107.66 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Plug terminal for head light | 1 | 06/1976 | 61131352234 | $1.72 | ENDED | Shop at ECS Tuning | |||
| 04 | Plug | 1 | 61131352357 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cable socket female | B=9,1/L=16,8 | 3 | 61131352577 | $0.95 | Shop at ECS Tuning | ||||
| 04 | Wiring head light | 1 | 09/1974 | 61121358177 | $107.66 | Shop at ECS Tuning | ||||
| 05 | Wire parking light | 1 | 09/1974 | 61121357453 | $2.27 | ENDED | Shop at ECS Tuning | |||
| 05 | Wire parking light | 1 | 09/1974 | 61121358176 | $8.35 | Shop at ECS Tuning | ||||
| For vehicles with California version |
=Yes |
|||||||||
| 07 | Wiring continuous light | 1 | 61111243088 | ENDED | Shop at ECS Tuning | |||||
