Plug/plug terminal for BMW R50/5-R90S 69-76 R90S (1976)

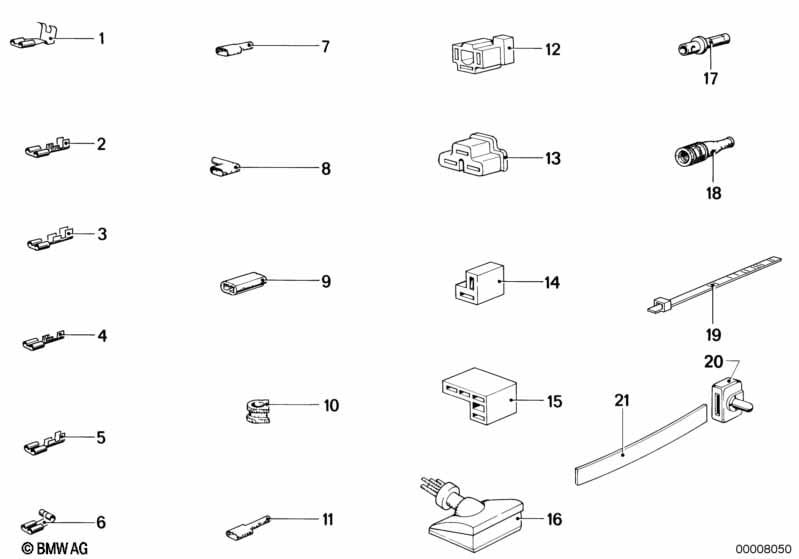

This Plug/plug terminal technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cable socket female | B=7,5/L=19,2MM | X | 61138061769 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Cable socket female | B=6,5/L=19,5 | 6 | 61131376460 | $0.48 | Shop at ECS Tuning | ||||
| 04 | Cable socket female | 1,0-2,5MM² | 3 | 61131352810 | $1.24 | ENDED | Shop at ECS Tuning | |||
| 05 | Cable socket female | B=8/L=20 | 3 | 61138608021 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable socket female | B=9,1/L=16,8 | 3 | 61131352577 | $0.95 | Shop at ECS Tuning | ||||
| 07 | Insulation sleeve | X | 61131362373 | Shop at ECS Tuning | ||||||
| 08 | Cap for flat plug | X | 61138061761 | $0.40 | Shop at ECS Tuning | |||||
| 09 | Insulation sleeve | 1 | 61131362373 | Shop at ECS Tuning | ||||||
| 10 | Rubber grommet | 1 | 61131352095 | $2.80 | Shop at ECS Tuning | |||||
| 11 | Grommet | 3 | 61138070188 | $0.42 | Shop at ECS Tuning | |||||
| 11 | Grommet | X | 61138070220 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| 12 | Plug terminal for head light | 1 | 06/1978 | 61131352234 | $1.72 | ENDED | Shop at ECS Tuning | |||
| 12 | Plug | 1 | 61131352357 | ENDED | Shop at ECS Tuning | |||||
| 13 | Housing | 1 | 12328608018 | $3.00 | +core | Shop at ECS Tuning | ||||
| 14 | Plug housing | 2-POLIG | 1 | 61131357903 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 15 | Plug housing | 1 | 61131351283 | $2.32 | Shop at ECS Tuning | |||||
| 17 | Cable socket round female | X | 61131371438 | $2.20 | Shop at ECS Tuning | |||||
| 18 | Protection cap | 2 | 61131375697 | $1.72 | Shop at ECS Tuning | |||||
| 19 | Cable tie | L=292MM/B=4,8MM | 5 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 20 | Lock | X | 61131352478 | $0.40 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
