Battery for BMW R50/5-R90S 69-76 R90S

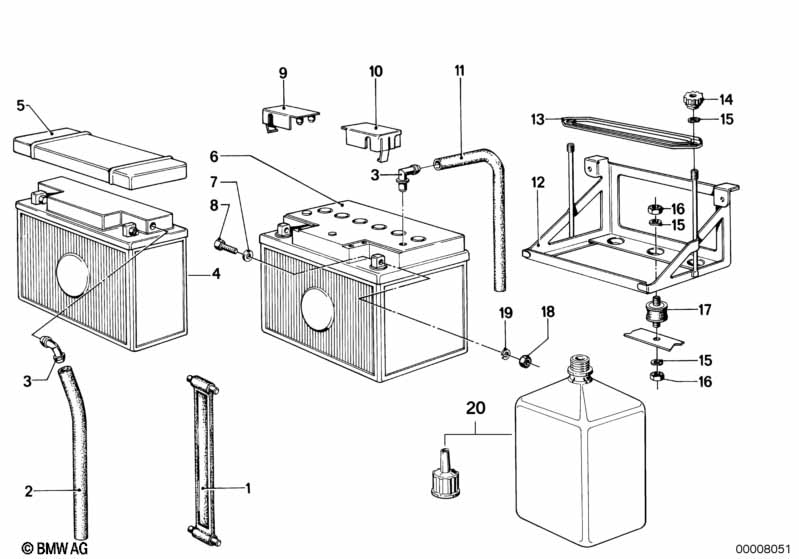

This Battery technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Hose connector | 1 | 61211243943 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 06 | Empty battery | 12V 25AH | 1 | 61211459650 | $139.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Washer | A6,4 | 2 | 61211459657 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex bolt | M6X18 | 2 | 07119913469 | $0.26 | Shop at ECS Tuning | ||||
| 09 | Covering cap | 1 | 61211357514 | $3.45 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering cap | 1 | 61211357515 | $3.45 | ENDED | Shop at ECS Tuning | ||||
| 12 | Battery hold down | 1 | 61211233076 | $187.75 | Shop at ECS Tuning | |||||
| 13 | Battery hold down | 1 | 61211233073 | $13.90 | Shop at ECS Tuning | |||||
| 14 | Ring nut | 2 | 61211233457 | $0.88 | Shop at ECS Tuning | |||||
| 15 | Spring washer Black | B6-ZN | X | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Washer | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Wave washer | B6-ZNS3 | X | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 16 | Hex nut | M6-8-ZNNIV SI | X | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Rubber Mounting | 5 | 61211233028 | $13.76 | Shop at ECS Tuning | |||||
| 18 | Hex nut | M6 | 2 | 61211459656 | $1.98 | ENDED | Shop at ECS Tuning | |||
| 19 | Spring washer | B6 | 2 | 61217670327 | $0.55 | Shop at ECS Tuning | ||||
| 20 | Battery acid parcel (6 bottles) | 25AH-30AH | 1 | 61219056972 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R50/5-R90S 69-76 R90S Battery?
- This technical diagram illustrates the Battery within the General Electrical System group for the R50/5-R90S 69-76 R90S. It provides a detailed exploded view of the components, identifying key parts such as the Hose connector (Part #61211243943).
- Which models use the hardware listed in this Battery?
- The hardware and components featured in the Battery are specific to the R50/5-R90S 69-76 R90S. These technical specifications ensure that parts like the Hose connector (61211243943) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery assembly?
- Each item in the Battery corresponds to the numbered list below the illustration. For the R50/5-R90S 69-76 R90S, you can identify the Hose connector by locating its position on the schematic, which then links to the official BMW part number 61211243943 for the General Electrical System section.
