Wiring warning buzzer for BMW R50/5-R90S 69-76 R90S

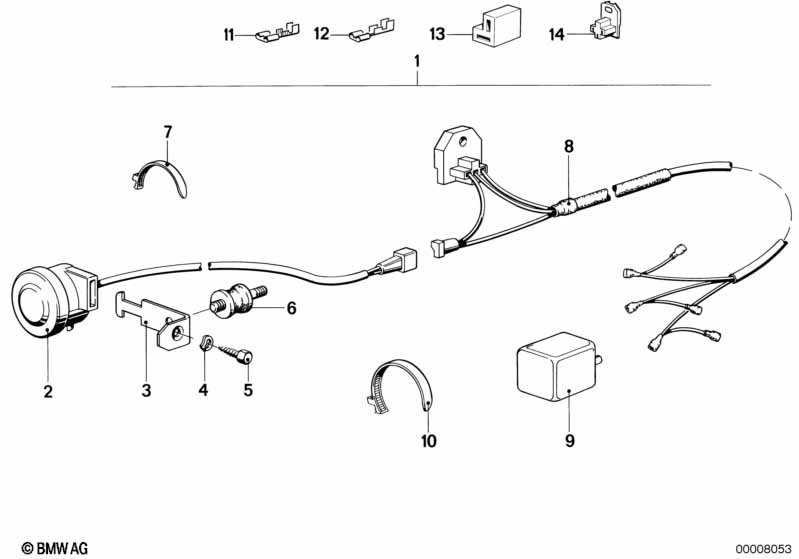

This Wiring warning buzzer technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FG* 09/75 | |||||||||
| 03 | Support | 1 | 61311243516 | $2.65 | Shop at ECS Tuning | |||||
| 04 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Sheet metal screw | ST4,8X9,5-C-H-Z | 1 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 06 | Rubber Mounting | 1 | 61211243530 | $13.76 | Shop at ECS Tuning | |||||
| 07 | Cable tie | L=200MM/B=3,6MM | 4 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 08 | Wiring warning buzzer | 1 | 61121243906 | ENDED | Shop at ECS Tuning | |||||
| 09 | Relay | 1 | 61311373916 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cable tie | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 11 | Cable socket female | B=7,5/L=19,2MM | X | 61138061769 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 12 | Cable socket female | B=3,7MM/L=14MM | X | 61131357090 | $0.68 | ENDED | Shop at ECS Tuning | |||
| 13 | Plug housing | 2-POLIG | X | 61131357903 | $0.84 | ENDED | Shop at ECS Tuning | |||
| 14 | Plug housing | 1 | 61131243290 | $1.45 | ENDED | Shop at ECS Tuning | ||||
